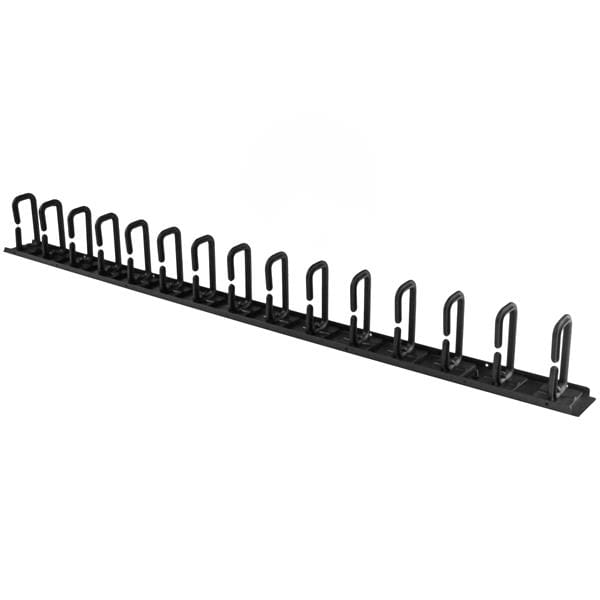

This 3-foot vertical cable manager gives you a simple and space-efficient way to organize the cables in your server rack. You can attach the cable manager vertically into your rack, to neatly guide cables between equipment that?s mounted at different heights.
The 0U cable manager offers versatile installation options and is compatible with most racks that are 20U or larger. The panel features a 0U design that doesn?t take up any mounting space, and with simple tool-less installation it's easy to attach or reposition as necessary.
Improve the appearance and accessibility of your rack
The cable manager uses a D-ring method of cable management to run cables vertically along the side of your rack, neatly guiding them between equipment that?s mounted at different heights. This provides a tidy and well-organized way to run cables from devices mounted toward the bottom of your rack to other devices mounted near the top, without leaving a mess of cables hanging in between.
Having neatly organized and routed cables not only improves the appearance and accessibility of your rack, it also makes it easier for you to install, access and maintain rack components.
Hassle-free compatibility with your rack
For maximum compatibility with virtually any server rack, you can install the cable-management panels using mounting holes that are commonly found on most rack equipment. The tool-less mounting method attaches the cable management panel to the keyhole-shaped mounting holes that are built into your rack.
The horizontal mounting rail method attaches the cable management panel to the horizontal mounting rails that run along the side of your rack.
For racks that don't support these installation methods, you can also mount the cable management panels through other means, such as using the non-standardized holes found on your rack walls and enclosures, or the rack units on equipment mounting rails.
Protect your equipment
Routing your cables through a panel reduces the tension that's often put on cables. This prevents cable damage or connection loss, and reduces strain on equipment ports, preventing damage to your expensive rack-mount devices.
Properly routing cables also improves airflow, which passively cools devices stored in your rack, helping to keep your equipment running at optimal temperatures to reduce the probability of damage caused by your rack overheating.
The CMVER20UD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
| Frame Type | Steel |
| Mounting Options | Front and Rear Mount |
| Orientation | Vertical |
| U Height | 20U |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 87 mm [3.4 in] |
| Product Length | 50 mm [2 in] |
| Product Weight | 760 g [26.8 oz] |
| Product Width | 863.6 mm [34 in] |
| What's in the Box | |
| Included in Package | 12mm washers |
| instruction manual | |
| M4 nuts | |
| M4 x 16 mm screws | |
| vertical cable organizer | |
| Features | |
| Type Characteristics of the device. | Cable management panel |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| Rack capacity The spase that device fill in rack. | 20U |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 863.6 mm |
| Depth The distance from the front to the back of something. | 50 mm |
| Height The measurement of the product from head to foot or from base to top. | 87 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 760 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 960 mm |
| Package height The distance from the top to the bottom of the packaging. | 105 mm |
| Package weight Weight of the packaged product. | 1.29 kg |
| Packaging content | |
| Screws included |
 |
| SKU | 240471 |
| MPN | CMVER20UD |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
