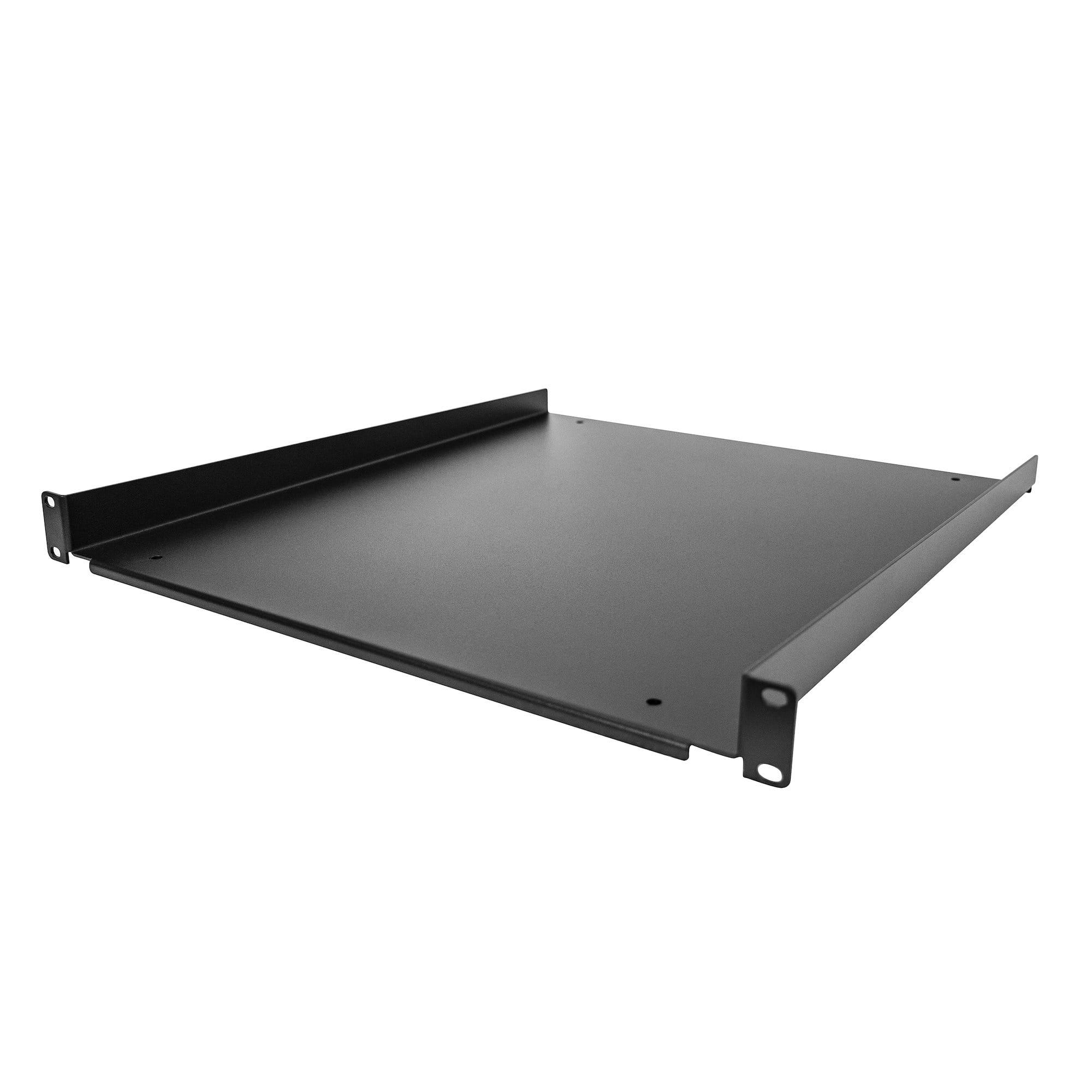

The SHELF-1U-20-FIXED-S lets you add a 1U 20 inches (50.8 cm) deep shelf to any EIA-310 compliant 19-inch rack or cabinet.
Quality construction
The fixed-rack shelf can hold up to 55 lbs (25 kg) of equipment and is constructed using 2.0 mm SPCC commercial-grade cold-rolled steel for long-term durability and sturdiness. Accommodate your accessories or non-mountable devices for ease of access or connectivity to your equipment.
Two installation options
You can install the 1U rack shelf using one of two different orientations for mounting. The standard, with the lip facing downwards or inversed with the lip facing upwards that prevents your equipment from sliding off.
Hardware included
Conveniently includes M6 square cage nuts and M6 screws to setup your equipment in no time.
The SHELF-1U-20-FIXED-S is backed by a StarTech.com lifetime warranty and free lifetime technical support.
| Features | |
| Type Characteristics of the device. | Rack shelf |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | SPCC |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 25 kg |
| Rack capacity The spase that device fill in rack. | 1U |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 483 mm |
| Depth The distance from the front to the back of something. | 508 mm |
| Height The measurement of the product from head to foot or from base to top. | 43 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 560 mm |
| Package depth The distance from the front to the back of the packaging. | 550 mm |
| Package height The distance from the top to the bottom of the packaging. | 120 mm |
| Package weight Weight of the packaged product. | 5.2 kg |
| Packaging content | |
| Quick installation guide |
 |
| Screws included |
|
| Screw type | M6 |
| Cage nuts included |
|
| Logistics data | |
| Master (outer) case width | 505 mm |
| Master (outer) case length | 588 mm |
| Master (outer) case height | 565 mm |
| Products per master (outer) case | 4 pc(s) |
| Harmonized System (HS) code | 85389099 |
| SKU | 823278 |
| MPN | SHELF-1U-20-FIXED-S |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
