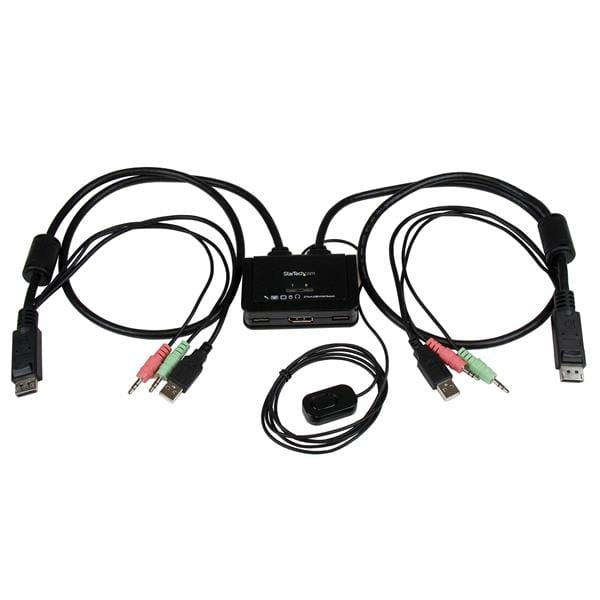

The SV211DPUA 2-Port DisplayPort® Cable KVM Switch with Audio and Remote Switching Control lets you control two DisplayPort, USB equipped PCs with a single monitor, keyboard, mouse and audio peripheral set.
To help organize your desk without sacrificing work space, this compact DisplayPort USB KVM features integrated cables that can be connected directly to your system, while leaving a minimal footprint. The switch features a remote push-button on a 1.5 meter (5ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac® compatible software for switching between systems. To eliminate the need for a bulky external power adapter and wall outlet, the DisplayPort KVM switch is USB-powered.
This KVM with DisplayPort video capability offers support for resolutions up to 2560x1600 for the ability to drive a large DisplayPort display for applications that require high graphical output.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) |
| DisplayPort (20 pin) Female | |
| USB Type-A (4 pin) USB 2.0 | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Male |
| DisplayPort (20 pin) Male Latching | |
| USB Type-A (4 pin) USB 2.0 Male | |
| Environmental | |
| Humidity | 0~90% RH Non-Condensing |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | Yes |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | PC Selection indictor |
| Packaging Information | |
| Shipping (Package) Weight | 550 g [19.4 oz] |
| Performance | |
| Audio Specifications | Analog (3.5mm) and DisplayPort audio supported |
| Hot-Key Selection | Yes |
| IP Control | No |
| On-Screen Display | No |
| Port Selection Support | Push Button, Hotkeys, and Software |
| Physical Characteristics | |
| Cable Length | 850 mm [33.5 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 23 mm [0.9 in] |
| Product Length | 88 mm [3.5 in] |
| Product Weight | 400 g [14.1 oz] |
| Product Width | 66 mm [2.6 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Mac OS 10.x (Tested up to 10.9), 9.x |
| Special Notes / Requirements | |
| Note | OS Compatibility refers to KVM software only - the KVM itself can be used without software on any platform |
| What's in the Box | |
| Included in Package | Instruction Manual |
| KVM Switch | |
| Software CD | |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| Console ports | DisplayPort,3.5mm headphone,3.5mm mic,USB A |
| Console USB ports quantity | 2 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 2K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2560 x 1600 pixels |
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Daisy chain |
|
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Cable length How long the cable is. | 0.85 m |
| LED indicators |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC, CE, UL, REACH |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| USB powered The device can be powered via a USB connection. |
|
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 66 mm |
| Depth The distance from the front to the back of something. | 88 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 367 g |
| Packaging data | |
| Package length | 9.84 |
| Package width The distance from one side of the packaging to the other. | 163 mm |
| Package depth The distance from the front to the back of the packaging. | 250 mm |
| Package height The distance from the top to the bottom of the packaging. | 62 mm |
| Package weight Weight of the packaged product. | 480 g |
| Packaging content | |
| Manual |
|
| Software included |
|
| Other features | |
| Audio support |
|
| IP control |
|
| SKU | 245945 |
| MPN | SV211DPUA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
