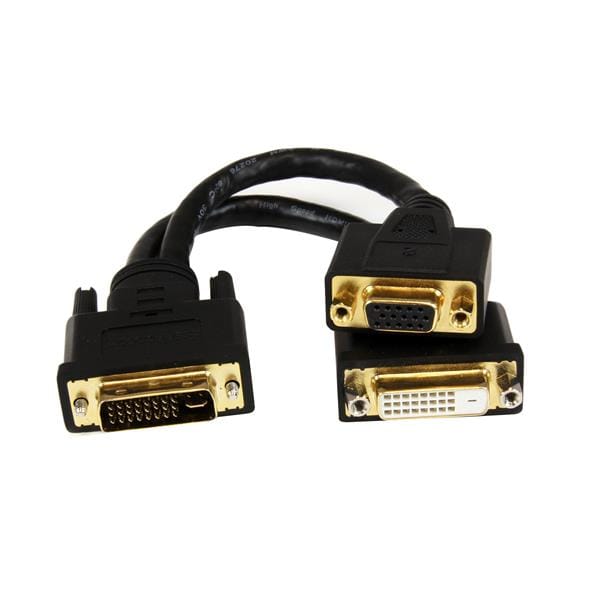

The DVI92030202L Wyse DVI splitter cable features a male DVI-I connector which splits off to one female DVI-D cable as well as one female HD15 VGA cable, so you can simultaneously connect a DVI-D and a VGA display or projector to your Wyse terminal.
This high-quality dual monitor cable is a cost-effective replacement for your Wyse 920302-02L splitter cable, and is backed by StarTech.com’s lifetime warranty.
| Connector(s) | |
| Connector A | DVI-I (29 pin) Male |
| Connector B | DVI-D (25 pin) Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Gold |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 123 g [4.3 oz] |
| Physical Characteristics | |
| Cable Length | 203.2 mm [8 in] |
| Color | Black |
| Product Length | 203.2 mm [8 in] |
| Product Weight | 115 g [4.1 oz] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 8in DVI-I Male to DVI-D Female and HD15 VGA Female Wyse DVI Splitter Cable |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable length How long the cable is. | 0.203 m |
| Connector 1 This is the first connector in the device. | DVI-I |
| Connector 2 This is the second connector in the device. | DVI-D + VGA (D-Sub) |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 28 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 290 mm |
| Package height The distance from the top to the bottom of the packaging. | 17 mm |
| Package weight Weight of the packaged product. | 114 g |
| Package length | 11.50 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 107 g |
| SKU | 240961 |
| MPN | DVI92030202L |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
