This Cat5e patch cable delivers reliable network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need

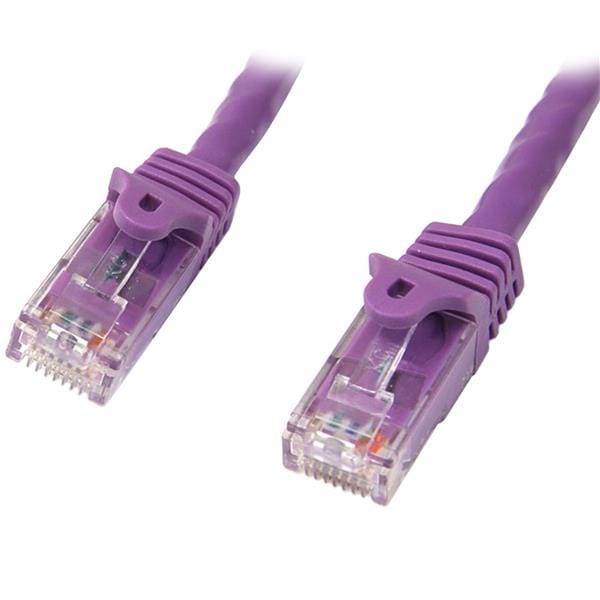

This 7-meter purple network cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall- jack.
For easier network installations, our Cat 5e cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.
Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moulded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat5e Ethernet cables, each one manufactured using high-quality copper conductors. They are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gauge wire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity, while eliminating signal loss due to oxidation or corrosion.
The 45PAT7MPL is backed by StarTech.com?s lifetime warranty for guaranteed reliability.
| Connector(s) | |
| Connector A | RJ-45 Male |
| Connector B | RJ-45 Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Type | Snagless |
| Fire Rating | CM Rated |
| Number of Conductors | 4 pair UTP |
| Packaging Information | |
| Shipping (Package) Weight | 264 g [9.3 oz] |
| Performance | |
| Cable Rating | CAT5e - 350 MHz |
| Physical Characteristics | |
| Cable Length | 7 m [23 ft] |
| Color | Purple |
| Conductor Type | Stranded Copper |
| Product Length | 7 m [23 ft] |
| Product Weight | 248 g [8.8 oz] |
| Wire Gauge | 24 AWG |
| What's in the Box | |
| Included in Package | Cat5e patch cable |
| Features | |
| Cable colour Colour of the cable e.g. white, gray. | Purple |
| Cable length How long the cable is. | 7 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat5e |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/UTP (UTP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| Conductor material | Copper |
| Cable rating | CMG (CM) |
| Cabling technology Type of cable technology performance. | 10/100Base-T(X) |
| Ethernet interface type | Fast Ethernet |
| AWG wire size | 24 |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 100 Mbit/s |
| Frequency | 350 MHz |
| Snagless cable boot |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, REACH |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 248 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 255 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 20 mm |
| Package weight Weight of the packaged product. | 264 g |
| SKU | 248262 |
| MPN | 45PAT7MPL |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
