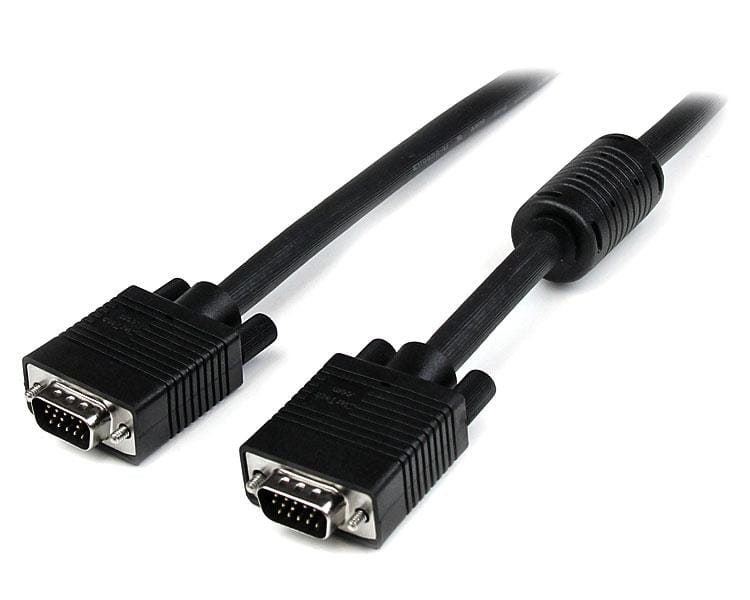

The MXTMMHQ7M 7m long VGA cable allows you to connect your VGA monitor or projector at distances of up to 25 feet from your computer, video switch or other VGA device. The high-resolution cable is designed to provide the highest video quality possible through VGA and is ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
This 7m VGA cable is backed by StarTech.com’s lifetime warranty.
| Connector(s) | |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
| Connector B | VGA (15 pin, High Density D-Sub) Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 14 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 803 g [28.3 oz] |
| Physical Characteristics | |
| Cable Length | 7 m [23 ft] |
| Color | Black |
| Product Length | 7 m [23 ft] |
| Product Weight | 793 g [28 oz] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 7m Coax High Resolution Monitor VGA Cable - HD15 M/M |
| Features | |
| Cable length How long the cable is. | 7 m |
| Connector 1 This is the first connector in the device. | VGA (D-Sub) |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| AWG wire size | 28 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Package length | 12.99 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 767 g |
| Package width The distance from one side of the packaging to the other. | 252 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 0.1 mm |
| Package weight Weight of the packaged product. | 739 g |
| SKU | 243516 |
| MPN | MXTMMHQ7M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
