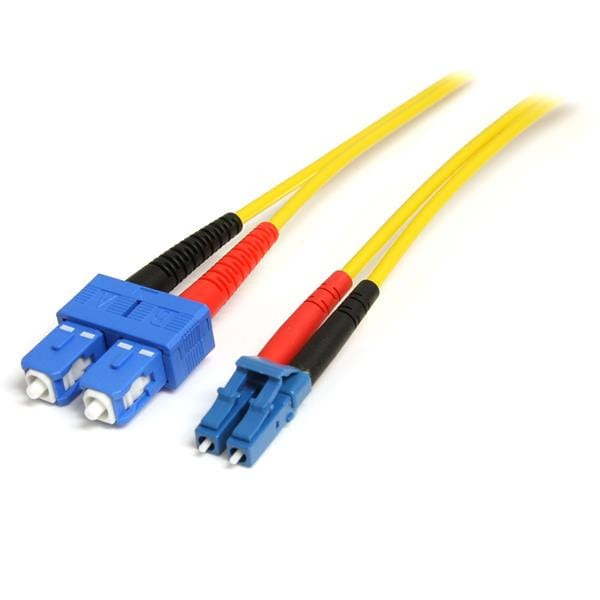

The SMFIBLCSC7 7m LC to SC Single-Mode Duplex Fiber Cable features 9/125 micron fiber for high-speed, high bandwidth data transmissions over Gigabit Ethernet and Fiber Channel networks, with support for duplex single-mode applications.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire – an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 9/125 (OS1) Single-Mode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
| Connector(s) | |
| Connector A | Fiber Optic LC Duplex Male |
| Connector B | Fiber Optic SC Duplex Male |
| Hardware | |
| Fiber Size | 9/125 |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 110 g [3.9 oz] |
| Performance | |
| Fiber Classification | OS1 |
| Fiber Type | Single Mode |
| Physical Characteristics | |
| Cable Length | 7 m [23 ft] |
| Color | Yellow |
| Product Length | 7 m [23 ft] |
| Product Weight | 99 g [3.5 oz] |
| What's in the Box | |
| Included in Package | 7m Single Mode Duplex Fiber Patch Cable LC-SC |
| Features | |
| Cable length How long the cable is. | 7 m |
| Connector 1 This is the first connector in the device. | LC |
| Connector 2 This is the second connector in the device. | SC |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable colour Colour of the cable e.g. white, gray. | Yellow |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Core diameter The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire. | 9 µm |
| Cladding diameter The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire. | 125 µm |
| Fiber mode structure | Single-mode |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 99 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 28 mm |
| Package weight Weight of the packaged product. | 110 g |
| Other features | |
| Package length | 8.66 |
| SKU | 245434 |
| MPN | SMFIBLCSC7 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
