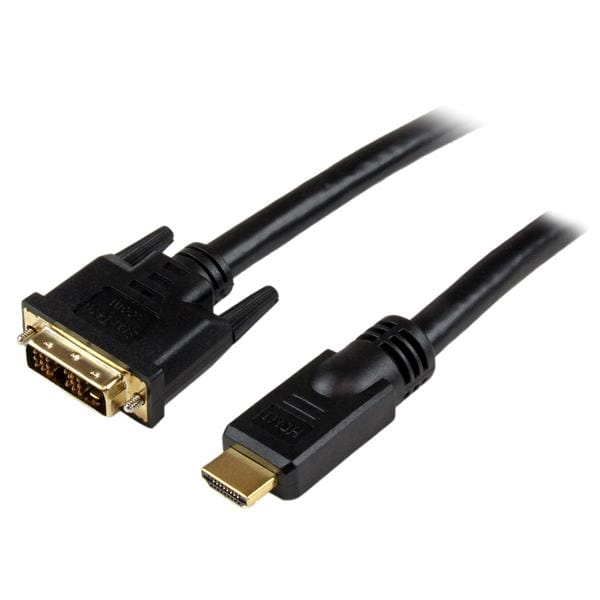

The HDDVIMM7M 7m HDMI® to DVI-D cable enables you to connect a DVI-D video card (or other DVI-D output device) to a display that incorporates HDMI technology. The cable supports bi-directional operation that also allows the reverse configuration, delivering digital video from an HDMI-enabled output to a DVI-D capable display.
A valuable addition to any digital signage, multimedia or home theater application, this high-performance cable is designed to provide the best quality picture available through either HDMI technology or DVI digital connections.
This durably constructed HDMI/DVI-D adapter cable is backed by StarTech.com's Lifetime Warranty.
| Connector(s) | |
| Connector A | HDMI (19 pin) Male |
| Connector B | DVI-D (19 pin) Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Gold |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 846 g [29.9 oz] |
| Physical Characteristics | |
| Cable Length | 7 m [23 ft] |
| Color | Black |
| Connector Style | Straight |
| Product Length | 7 m [23 ft] |
| Product Weight | 826 g [29.2 oz] |
| Wire Gauge | 24 AWG |
| What's in the Box | |
| Included in Package | 7m HDMI? to DVI-D Cable - M/M |
| Features | |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable length How long the cable is. | 7 m |
| Connector 1 This is the first connector in the device. | HDMI |
| Connector 2 This is the second connector in the device. | DVI-D |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 24 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 255 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 10 mm |
| Package weight Weight of the packaged product. | 906.7 g |
| Package length | 12.99 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.1 kg |
| SKU | 241913 |
| MPN | HDDVIMM7M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
