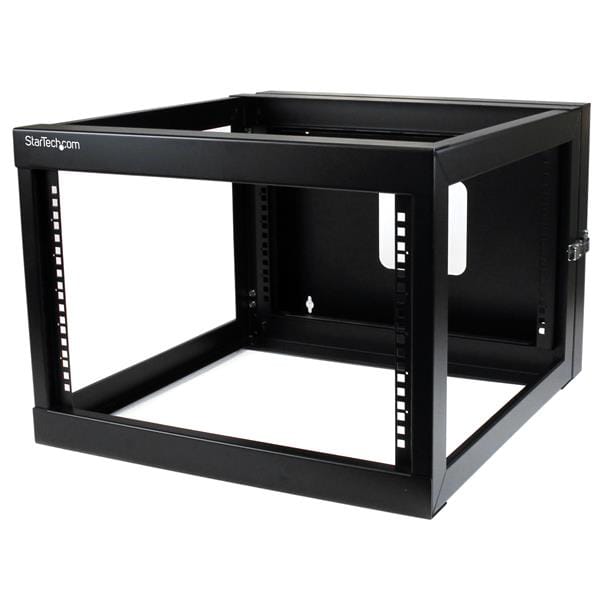

The RK619WALLOH 6U 22in Depth Hinged Open Frame Wall Mount Server Rack lets you wall mount your (19-inch wide) servers, A/V or network equipment and features a hinged rack design that allows the entire frame to swing open for easy installation and maintenance of your equipment. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The 6U wallmount rack offers a 4 post design for additional support of your equipment, storing a maximum weight capacity of 49.8 kg (110 lbs). Constructed of high-quality SPCC cold-rolled steel for strength and durability, the open frame wallmount server rack allows for maximum airflow, and ships complete with all of the rack screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
| Hardware | |
| Fan(s) | No |
| Frame Type | Open Frame |
| Front Door Construction | Open |
| Industry Standards | EIA RS310-D |
| Key Lock | No |
| Rack Type | 4-Post |
| U Height | 6U |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack | No |
| Shipping (Package) Weight | 16.3 kg [36.1 lb] |
| Performance | |
| Weight Capacity | 49.8 kg [110 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| External Depth | 555 mm [21.9 in] |
| External Height | 408 mm [16.1 in] |
| External Width | 604 mm [23.8 in] |
| Maximum Mounting Depth | 507.4 mm [20 in] |
| Product Weight | 14.4 kg [31.8 lb] |
| What's in the Box | |
| Included in Package | #10-32 UNF Cage Nuts |
| #10-32 UNF Panel Screws | |
| Hinged Wall Mount Rack | |
| Instruction Manual | |
| Features | |
| Rack capacity The spase that device fill in rack. | 6U |
| Type Characteristics of the device. | Wall mounted rack |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 49.8 kg |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Steel |
| Frame type | Open |
| Design The creation of a plan or convention for the construction of an object or a system. | 4-post |
| Key lock |
 |
| Front door key lock |
|
| Adjustable mounting rails |
|
| Cable management Description of improved cable management |
|
| Mounting hole shape | Square |
| Castor wheels A castor (or caster) wheel is an undriven, single, double, or compound wheel that is designed to be mounted to the bottom of a larger object (the "vehicle") so as to enable that object to be easily moved. They are available in various sizes, and are commonly made of rubber, plastic, nylon, aluminum, or stainless steel. Castor wheels are found in numerous applications, including shopping carts, office chairs, and material handling equipment. |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | REACH, CE, UL, TAA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 556 mm |
| Depth The distance from the front to the back of something. | 602 mm |
| Height The measurement of the product from head to foot or from base to top. | 408 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 14 kg |
| Mounting depth (max) | 50.2 cm |
| Packaging data | |
| Nuts included |
|
| Number of nuts | 24 |
| Screws included |
|
| Number of screws | 24 |
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 636 mm |
| Package depth The distance from the front to the back of the packaging. | 660 mm |
| Package height The distance from the top to the bottom of the packaging. | 480 mm |
| Package weight Weight of the packaged product. | 16.4 kg |
| Other features | |
| Compliance industry standards List of characteristics that describe methods of compliance to industry-defined standards for the product | EIA/ECA-310-E |
| Package length | 25.79 |
| SKU | 244538 |
| MPN | RK619WALLOH |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
