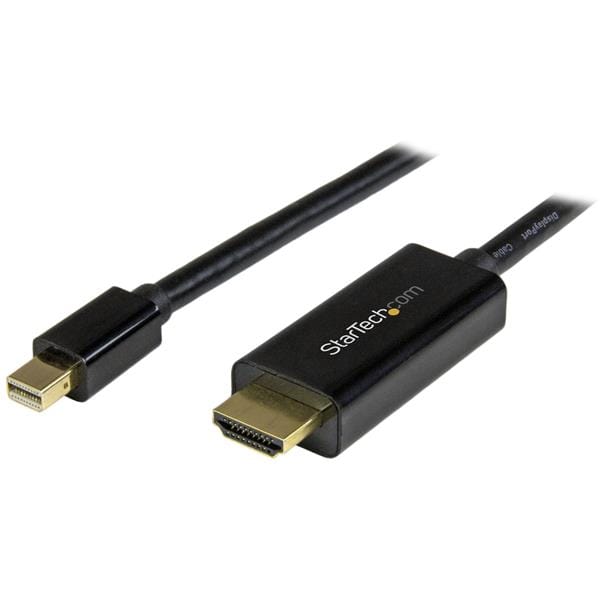

This 5-meter (15 ft.) Mini DisplayPort™ to HDMI® adapter cable offers a single-cable connection from your mDP equipped MacBook or Ultrabook™ laptop to an HDMI display or projector. The passive adapter supports video resolutions up to Ultra HD 4K and is Thunderbolt™ compatible, when connected directly to a supporting DisplayPort over Thunderbolt I/O port.
Astonishing picture quality
This adapter cable works with your 4K HDMI display and video source to ensure you it maintains it's astonishing picture quality, four times the resolution of 1080p, when converting Mini DisplayPort to HDMI.
The adapter is also backward compatible with lower resolution displays and video sources. With support for high-definition resolutions of 1080p and 720p, you can future-proof your existing setup for 4K video.
Hassle-free setup
For the simplest and most discreet installation, this mDP to HDMI adapter connects directly from your Mini DisplayPort video source to the HDMI port on your display. It doesn't need a power source, unlike some converter dongles that require active power and separate video cabling.
Clutter-free installation
At 5 m in length, this adapter cable delivers a direct connection that eliminates excess to ensure a tidy, professional installation. For shorter installations, we also offer a 1-meter mDP to HDMI cable (MDP2HDMM1MB), a 2-meter mDP to HDMI cable (MDP2HDMM2MB), and a 3-meter mDP to HDMI cable (MDP2HDMM3MB), enabling you to choose the right cable length for your custom installation needs.
The MDP2HDMM5MB is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | Mini-DisplayPort (20 pin) Male Input |
| Connector B | HDMI (19 pin) Male Output |
| Environmental | |
| Humidity | 10%-85% |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -10?C to 70?C (14?F to 158?F) |
| Hardware | |
| Adapter Style | Adapter |
| Audio | Yes |
| Converter Type | Passive |
| Industry Standards | DPCP (DisplayPort Content Protection) HDCP (High Definition Content Protection) DisplayPort 1.2 HDMI 1.4 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| Audio Specifications | 7.1 surround sound |
| Maximum Cable Length | 5000 mm [196.9 in] |
| Maximum Digital Resolutions | 4K x 2K @ 30 Hz |
| Supported Resolutions | 4k x 2K (Ultra HD) 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 5 m [16.4 ft] |
| Product Length | 5003 mm [197 in] |
| Product Weight | 208 g [7.3 oz] |
| What's in the Box | |
| Included in Package | mDP to HDMI adapter cable |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Cable length How long the cable is. | 5 m |
| Connector 1 This is the first connector in the device. | Mini DisplayPort |
| Connector 2 This is the second connector in the device. | HDMI |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| HDMI version | 1.4 |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Supported audio channels | 7.1 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Converter type | Passive |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | REACH, CE, FCC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 30 mm |
| Package weight Weight of the packaged product. | 216 g |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 209.7 g |
| Depth The distance from the front to the back of something. | 5000 mm |
| SKU | 242977 |
| MPN | MDP2HDMM5MB |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
