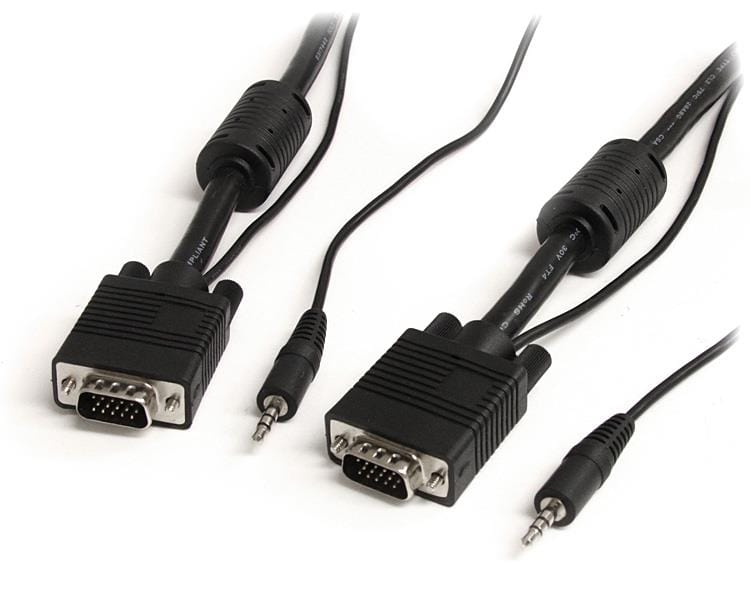

The MXTHQMM5MA 5-meter High Resolution VGA Cable with Audio is a high quality SVGA cable designed to provide the highest video quality possible through VGA - a single cable solution for connecting both video between a VGA video card and monitor, and audio connections between a sound card and external audio device.
StarTech.com?s high resolution VGA cable with audio features high quality male-to-male coaxial VGA cable, and is designed to eliminate picture "ghosting" and fuzzy images that are inherent to non-coaxial cables, while providing superior EMI interference protection by using ferrite cores near the connector ends.
The 5-meter SVGA cable (VGA Cable with Audio) is backed by StarTech.com?s Lifetime Warranty.
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Male |
| VGA (15 pin, High Density D-Sub) Male | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Male |
| VGA (15 pin, High Density D-Sub) Male | |
| Environmental | |
| Humidity | 0 - 80 %RH |
| Operating Temperature | 0 to 60 ?C |
| Storage Temperature | -20 to 80 ?C |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 14 |
| Number of Ferrites | 2 |
| Regulatory Approvals | UL2919 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 0.6 kg [1.3 lb] |
| Performance | |
| Impedance | 75 Ohm |
| Physical Characteristics | |
| Cable Length | 5 m [16.4 ft] |
| Color | Black |
| Connector Style | Straight |
| Product Length | 5000 mm [196.9 in] |
| Product Weight | 592 g [20.9 oz] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 5 m Coax High Resolution Monitor VGA Cable with Audio HD15 M/M |
| Features | |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable length How long the cable is. | 5 m |
| Connector 1 This is the first connector in the device. | VGA (D-Sub) + 3.5mm |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) + 3.5mm |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 56 mm |
| Package depth The distance from the front to the back of the packaging. | 255 mm |
| Package height The distance from the top to the bottom of the packaging. | 625 mm |
| Package weight Weight of the packaged product. | 609 g |
| Package length | 12.99 |
| SKU | 243439 |
| MPN | MXTHQMM5MA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
