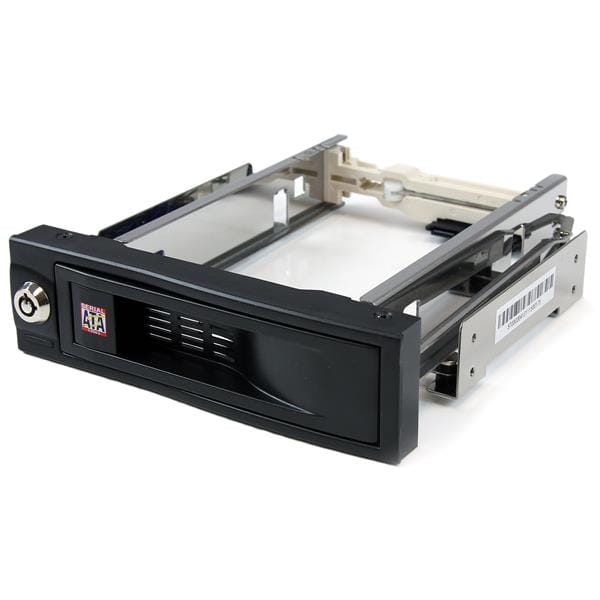

This 3.5in SATA hard drive hot-swap bay allows you to install a 3.5in SATA drive in an available/unused 5.25in drive bay. To remove the drive, it's as simple as opening the front panel door; to re-insert a drive, simply insert the drive (connector first) until the door closes.
The hot swap bay offers a trayless design that makes it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments.
To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller.
Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution.
With support for SATA HDD speeds up to 6.0 Gbps, the mobile rack/backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications.
Designed to provide a durable and reliable operating experience, the mobile rack features a 50,000+ insertion rating and is backed by StarTech.com's 2-year warranty.
| Connector(s) | |
| Drive Connectors | SATA (7 pin, Data) Receptacle |
| SATA Power (15 pin) Receptacle | |
| Host Connectors | SATA (7 pin, Data) Plug |
| SATA Power (15 pin) Plug | |
| Environmental | |
| Humidity | Operating - 5~85% RH Non-condensing Storage - 5~95% |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Hardware | |
| Compatible Drive Types | SATA |
| Drive Size | 3.5in |
| Key Lock | Yes |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Drive Power/Activity |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [1 lb] |
| Performance | |
| Hot Swap Capability | Yes |
| Insertion Rating | 50,000+ Cycles |
| Temperature Alarm | No |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 42 mm [1.7 in] |
| Product Length | 184 mm [7.2 in] |
| Product Weight | 305 g [10.8 oz] |
| Product Width | 149 mm [5.9 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 5.25" Tray-Less SATA Hot-Swap Bay |
| Instruction Manual | |
| Key | |
| Screw Kit | |
| Features | |
| Size (imperial) Physical dimension. | 13.3 cm (5.25") |
| Type Characteristics of the device. | Bezel panel |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 1 |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA,Serial ATA II,Serial ATA III |
| Number of cycles | 50000 |
| LED indicators | Activity,Power |
| Key lock |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum, PU plastic |
| Certification | CE, FCC, REACH |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 149 mm |
| Depth The distance from the front to the back of something. | 184 mm |
| Height The measurement of the product from head to foot or from base to top. | 42 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 261 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 206 mm |
| Package depth The distance from the front to the back of the packaging. | 159 mm |
| Package height The distance from the top to the bottom of the packaging. | 51 mm |
| Package weight Weight of the packaged product. | 366 g |
| Packaging content | |
| Screws included |
|
| Manual |
|
| Number of lock keys included | 2 pc(s) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage relative humidity (H-H) | 5 - 95% |
| SKU | 242221 |
| MPN | HSB100SATBK |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
