Max Resolution: 4K x 2K @ 30Hz & USB Powered Performance
Want to add 4K Ultra HD video to your computer system? Now, you can enjoy the picture quality of Ultra HD video, even if your system doesn't natively support 4K video output.
With an additional 4K monitor connected to your computer, you can extend or mirror your desktop for increased productivity. DisplayLink 4K Plug-and-Display certification ensures automatic driver installation, so you'll be ready to enjoy your Ultra HD display in no time.
Ultra HD Multi-tasking

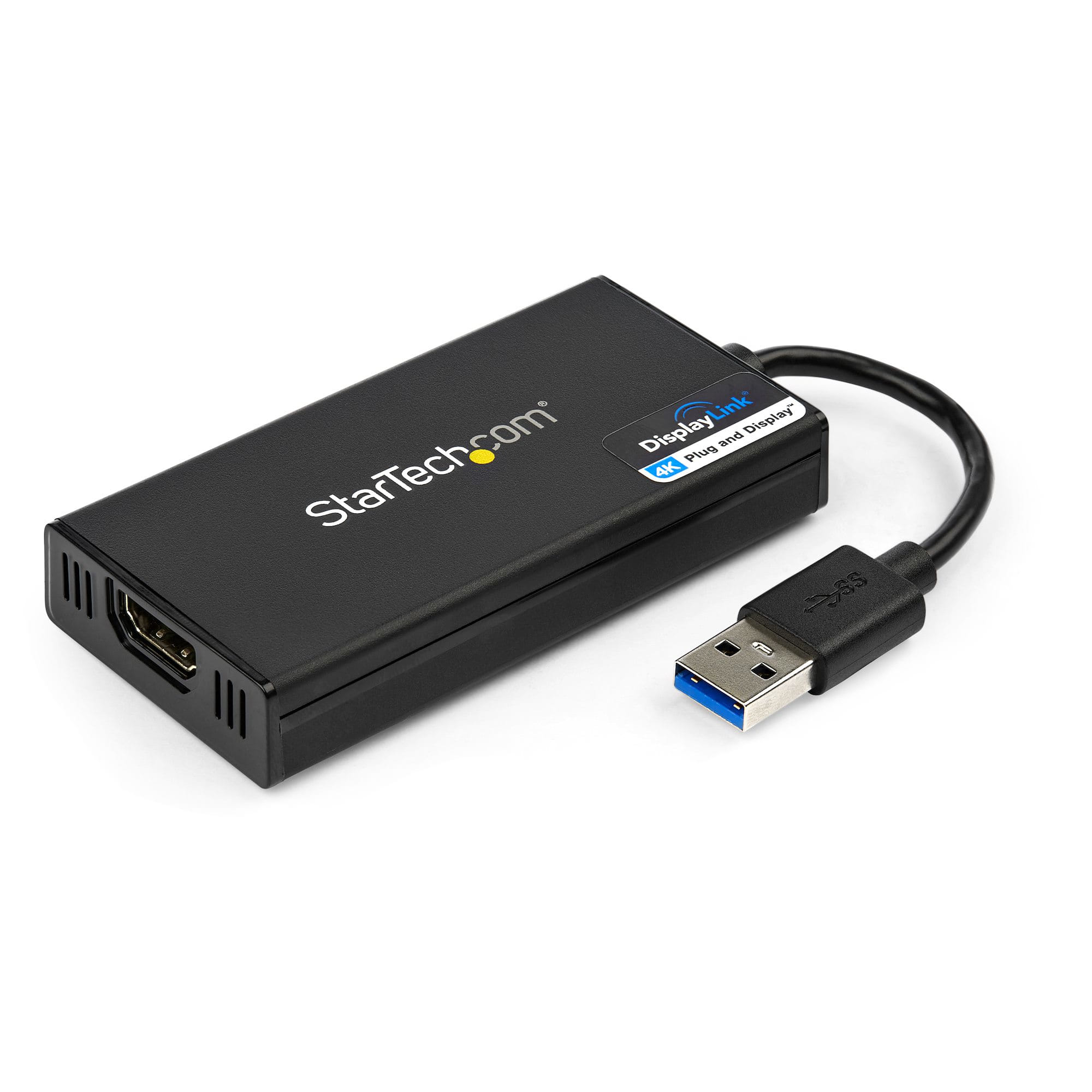

Now you can connect a 4K HDTV, monitor or projector to your computer, even if your laptop or desktop video card doesn?t natively support 4K output. The USB32HD4K USB to HDMI 4K adapter lets you extend or mirror your primary display onto an Ultra HD monitor or television, giving you the additional screen space you need to simplify multi-tasking and maximize your productivity.
Astonishing 4K Picture Quality
At four times the resolution of high-definition 1080p, you?ll be amazed at the picture quality of a 4K monitor or television; the USB32HD4K lets you harness the impressive bandwidth capability of a USB 3.0 connection to deliver the astonishing quality of Ultra HD to your 4K display. Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications.
DisplayLink 4K Plug-and-Display Certified
Installation has never been easier. When you connect this DisplayLink 4K Plug-and-Display certified adapter to a web-enabled Windows® 7, Windows® 8 or Windows® 10 computer, it automatically downloads and installs the most up-to-date drivers for you, so you won?t have to.
The USB32HD4K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | USB Type-A (9 pin) USB 3.0 Male |
| Connector B | HDMI (19 pin) Female |
| Environmental | |
| Humidity | <85% RH Non-Condensing |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 80?C (14?F to 167?F) |
| Hardware | |
| Audio | Yes |
| Cabling | HDMI |
| Chipset ID | DisplayLink - DL5500 |
| Memory | DDR 1Gb |
| Output Signal | HDMI |
| Ports | 1 |
| USB Pass-Through | No |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| Audio Specifications | 2-channel stereo |
| General Specifications | This USB video adapter uses a DisplayLink family chipset. If you?re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset. |
| Maximum Digital Resolutions | 4K x 2K @ 30Hz |
| Supported Resolutions | Widescreen(16/32 bit): 3840?2160, 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1366x768, 1280x800, 1280x768, 1280x720 Standard(16/32 bit): 1600x1200, 1400x1050, 1280x1024, 1024x768, 800x600, 640X480 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Cable Length | 63.5 mm [2.5 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 15 mm [0.6 in] |
| Product Length | 200 mm [7.9 in] |
| Product Weight | 65 g [2.3 oz] |
| Product Width | 45 mm [1.8 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 MacOS? 10.6 to 10.12 Ubuntu 14.04, 16.04 Chrome OS v55+ |
| Special Notes / Requirements | |
| System and Cable Requirements | CPU: Quad Core 2.4GHz or Higher (i5 recommended) RAM: 4GB or higher |
| What's in the Box | |
| Included in Package | Instruction Manual |
| Software Installation Disc | |
| USB 3.0 to HDMI External Video Card | |
| Performance | |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| DVI output |
 |
| HDMI output The device features an HDMI output. |
 |
| DisplayPort output The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. |
|
| Number of displays supported The number of displays that can be used with this product. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB connector gender | Male |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 1024 MB |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 768 (WXGA),1280 x 800,1366 х 768,1400 x 1050 (SXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2048 x 1152,3840 x 2160 |
| Supported video modes The video modes that can be displayed by the device. | 480p,720p,1080p,2160p |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | DisplayLink - DL-5500 |
| USB pass-through |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, DisplayLink, TAA, REACH |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Integrated USB cable |
|
| USB cable length | 0.063 m |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) | Ubuntu 14.04,Ubuntu 16.04 |
| Other operating systems supported | Chrome |
| Minimum processor family | Core i5 |
| Minimum processor speed | 2.4 GHz |
| Minimum RAM The smallest amount of RAM (random access memory) required to perform a particular function. | 4 GB |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 80 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 45 mm |
| Depth The distance from the front to the back of something. | 200 mm |
| Height The measurement of the product from head to foot or from base to top. | 15 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 65 g |
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 212 mm |
| Package height The distance from the top to the bottom of the packaging. | 41 mm |
| Package weight Weight of the packaged product. | 198 g |
| Packaging content | |
| Manual |
|
| Software CD |
|
| SKU | 210539 |
| MPN | USB32HD4K |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Adapter Type | USB Adapter, HDMI Adapter |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
