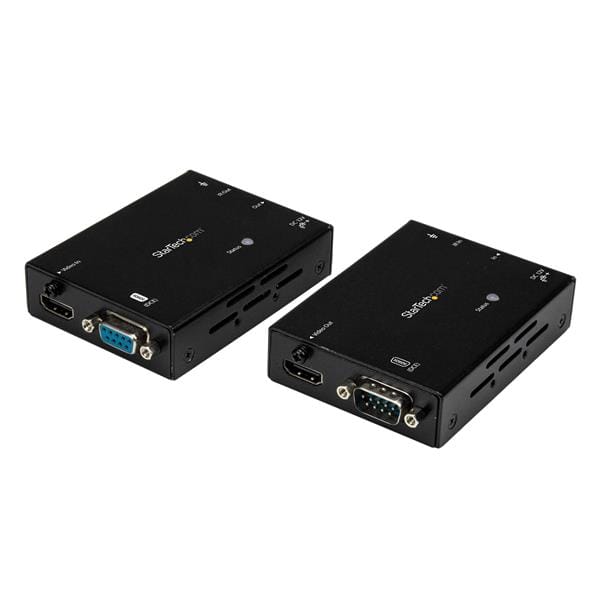

This HDBaseT™ extender kit can transmit your 4K HDMI signal up to 115 ft. (35 m) over a single CAT5e or CAT6 cable. At lower resolutions up to 1080p, the extender kit can transmit your signal up to 230 ft. (70 m).
Extend video and more with HDBaseT
The extender offers a complete end-to-end video and control solution, using HDBaseT technology to extend not just HDMI, but also DC power, IR and serial control over a single CAT5 cable. By extending so much over just one CAT5 or CAT6 cable, HDBaseT is the clear choice of every integrator and system designer.
The added benefit of power over cable means that you?ll only need one power source at one side of your extension - great for extending video and control to areas where power outlets may be limited, such as industrial sites.
Serial and IR extension optimizes operation by enabling you to control the video source or display from both the local and remote location.
Maximize reliability with HDBaseT certification
This HDBaseT extender has been certified via the HDBaseT Certification Program. This certification ensures the extender is compliant with HDBaseT technical standards, and maximizes reliability with your HDMI display and video source, by ensuring compliance with their established HDMI ecosystem.
Astonishing 4K picture quality at an impressive distance
With the A/V industry adopting 4K as the new high-resolution video standard, long-range video distribution can be a challenge over standard HDMI cables that become susceptible to signal degradation at 30 feet. This HDBaseT extender can maintain your Ultra HD 4K picture quality - four times the resolution of high-definition 1080p - even at 330 feet away from your video source. Plus, because the extender supports high-definition 1080p and lower resolutions, you can comfortably use this extender to make any video source look great, while future-proofing your setup for 4K implementation.
Professional installation
HDBaseT technology offers a single-cable installation, so you can integrate this solution seamlessly using your existing CAT5e or CAT6 infrastructure. Both the transmitter and receiver included with this HDBaseT extender kit are mountable, so you can keep the equipment out of sight in an equipment rack, or on a wall. This helps to reduce clutter and ensure a professional installation that doesn't draw your viewers' attention away from the content on your display. It?s perfect for customer-facing displays in bars, restaurants or hotel lobbies.
What is HDBaseT?
HDBaseT is a standardized, zero-latency video technology that?s revolutionizing HDMI distribution. HDBaseT uses an advanced method of modulation that enables you to distribute uncompressed HDMI audio and video, along with additional signals, over a single Ethernet cable.
Offering greater versatility than traditional HDMI extenders, and longer distances than HDMI cables alone, HDBaseT is the clear choice for every integrator and system designer. It can do so much, with just a single cable.
The ST121HDBTL is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Note: When using Power over Cable (PoC) to power the transmitter or receiver, it is not recommended to pair the StarTech.com transmitter or receiver with any other HDBaseT hardware. Power over Cable should only be used with the transmitter and receiver that are provided with this extender kit.
| Output Signal | HDMI |
| Connector(s) | |
| Local Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DB 9-pin Serial Male | |
| HDMI (19 pin) Female Input | |
| RJ-45 Female Output | |
| Remote Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DB 9-pin Serial Female | |
| HDMI (19 pin) Female Output | |
| RJ-45 Female | |
| Environmental | |
| Humidity | 0% - 80 % |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Indicators | |
| LED Indicators | status LED (receiver) |
| status LED (transmitter) | |
| Packaging Information | |
| Shipping (Package) Weight | 1.1 kg [2.4 lb] |
| Performance | |
| Audio Specifications | 7.1 Surround Sound |
| Max Distance | 100 m / 330 ft |
| Maximum Cable Length | 100 m [328 ft] |
| Maximum Digital Resolutions | 4096 x 2160 (4K) @ 30 Hz (35 meters) 1920 x 1080 (1080p) @ 60 Hz (70 meters) |
| Supported Resolutions | 3840x2160 (4K) 2560x1600 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel and Plastic |
| Product Height | 27 mm [1.1 in] |
| Product Length | 92 mm [3.6 in] |
| Product Weight | 452 g [16 oz] |
| Product Width | 66 mm [2.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | If you want to add more displays, you can daisy chain this product with the HDBaseT repeater ST121HDBTRP. |
| What's in the Box | |
| Included in Package | CAT5 cable |
| foot pads | |
| HDBaseT receiver | |
| HDBaseT transmitter | |
| IR blaster | |
| IR receiver | |
| mounting brackets | |
| universal power adapter (NA, EU, UK, ANZ) | |
| Features | |
| Type Characteristics of the device. | AV transmitter & receiver |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 4096 x 2160 pixels |
| Cable types supported | Cat5e,Cat6 |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Maximum refresh rate | 60 Hz |
| Audio system System used to play music or speech. | Multichannel |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| LED indicators | Status |
| Supported video modes The video modes that can be displayed by the device. | 720p,1080p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160 |
| Daisy chain |
 |
| Rubber feet |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDBaseT certified |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC, CE, TAA, REACH |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| RS-232 input ports | 1 |
| RS-232 output ports | 1 |
| Serial interface type | RS-232 |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Operating voltage Defines the range of operating voltages available | 12 V |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| External power adapter |
|
| Power plug type | Type M |
| Weight & dimensions | |
| Receiver dimensions (W x D x H) | 66 x 92 x 27 mm |
| Receiver weight | 452 g |
| Transmitter dimensions (WxDxH) | 66 x 92 x 27 mm |
| Transmitter weight | 452 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 194 mm |
| Package depth The distance from the front to the back of the packaging. | 281 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 1.1 kg |
| Packaging content | |
| AC adapter included |
|
| Cables included | LAN (RJ-45) |
| Included power plug types | ANZ,NA,UK |
| IR blaster included |
|
| IR receiver included |
|
| Mounting brackets included |
|
| SKU | 249249 |
| MPN | ST121HDBTL |
