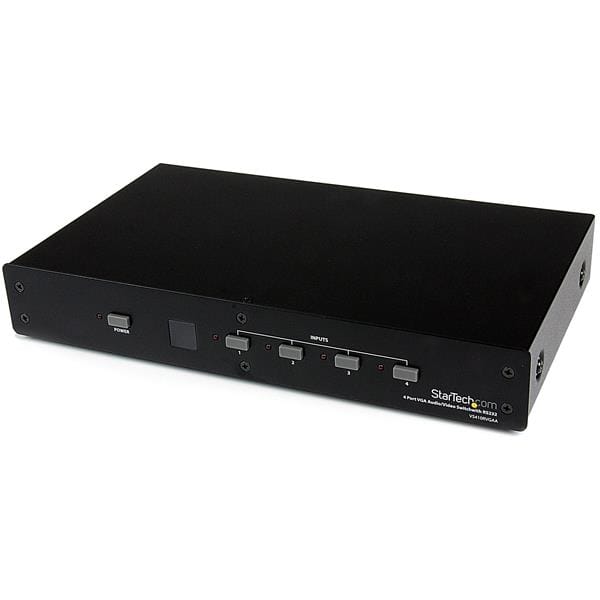

The VS410RVGAA 4 Port VGA Video Audio Switch with RS232 control lets you switch between four separate VGA signals, as well as the corresponding audio, for output to a single display or projector at resolutions up to 1920x1200 (PC) or 1080p (HDTV).
An ideal solution for situations where VGA and audio input ports are scarce, the VGA switch eliminates the hassle of having to swap out connections to your display and audio receiver, while letting you select the video source quickly and easily at the push of a button.
The VGA switch also features convenient remote switching capabilities through either RS232 serial remote control, or the included IR remote control - allowing you to switch between VGA input signals from a distance and in turn providing a convenient addition to presentation displays, trade shows, security environments and more.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Hardware | |
| Audio | Yes |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 2.3 kg [5.1 lb] |
| Performance | |
| Bandwidth | 650 MHz (-3dB) max |
| Maximum Analog Resolutions | 1920x1200 (PC), and 1080p (HDTV) |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 40 mm [1.6 in] |
| Product Length | 165 mm [6.5 in] |
| Product Weight | 1498 g [52.9 oz] |
| Product Width | 287 mm [11.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6A |
| Input Voltage | 110V-240V AC |
| Output Current | 2.6A |
| Output Voltage | 5 DC |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | 3ft. VGA Cable |
| 4x1 VGA Switch | |
| IR Remote Control | |
| Universal Power Adapter (US/UK/EU/AU) | |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 5 |
| Audio (L/R) in The two sockets (ports) for receiving left audio signal (white cable) and right audio signal (red cable). | 4 |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 650 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Cable length How long the cable is. | 0.165 m |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 5 W |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 287 mm |
| Height The measurement of the product from head to foot or from base to top. | 40 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.5 kg |
| Packaging data | |
| Package length | 12.68 |
| Package width The distance from one side of the packaging to the other. | 68 mm |
| Package depth The distance from the front to the back of the packaging. | 322 mm |
| Package height The distance from the top to the bottom of the packaging. | 327 mm |
| Package weight Weight of the packaged product. | 2.14 kg |
| Packaging content | |
| Handheld remote control Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | AC,VGA |
| SKU | 248010 |
| MPN | VS410RVGAA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
