Max Baud Rate: 921.6 Kbps

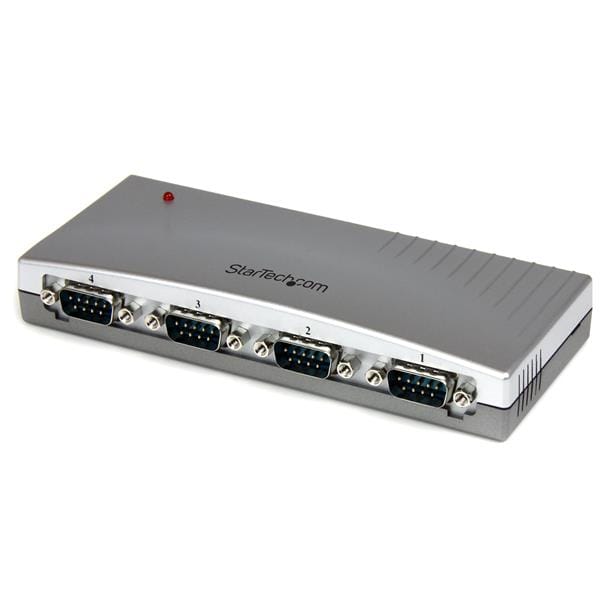

This 4 Port USB to RS232 Serial Hub lets you connect up to four RS232 serial devices to your Mac or PC laptop or desktop computer through a single USB port, as though the computer offered built-on DB9M serial connectors.
The RS232 Serial Hub is compactly designed to preserve valuable workspace, and is bus-powered to eliminate the need for an external power adapter.
A cost-effective solution that bridges the compatibility gap between modern USB-capable computers and legacy RS232 serial peripherals, this dependable USB/RS232 Serial Adapter hub is backed by StarTech.com's Lifetime Warranty.
| Connector(s) | |
| Connector Type(s) | USB Type-A (4 pin) USB 2.0 Male |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0?C to 55?C (32?F to 131?F) |
| Storage Temperature | -20 to 85?C (-4 to 185?F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT232RL |
| Industry Standards | RS232 |
| USB 1.1 | |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 4 |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.8 lb] |
| Performance | |
| FIFO | 256 Bytes |
| Max Baud Rate | 921.6 Kbps |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Cable Length | 1.8 m [6 ft] |
| Enclosure Type | Plastic |
| Product Height | 26 mm [1 in] |
| Product Length | 150 mm [5.9 in] |
| Product Weight | 110 g [3.9 oz] |
| Product Width | 66.5 mm [2.6 in] |
| Power | |
| Power Consumption (In Watts) | 1 ~ 1.5W |
| Software | |
| OS Compatibility | Windows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS? 10.6 to 10.12 Linux 2.4.x to 4.4.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | One free USB port |
| What's in the Box | |
| Included in Package | 4 Port Serial Hub |
| Driver CD | |
| Instruction Manual | |
| USB Cable | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | Serial |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 4 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Housing material What the casing of the product is made of. | Plastic |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 1 W |
| Power consumption (max) The maximum amount of power used by the device. | 1.5 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Other operating systems supported | Windows XP Embedded |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 66.5 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 110 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 150 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 53 mm |
| Package weight Weight of the packaged product. | 378 g |
| Package length | 230.00 |
| Packaging content | |
| Cables included | USB |
| Manual |
|
| Drivers included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Performance | |
| Baud rate | 921.6 Kbit/s |
| Other features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | FTDI - FT232RL |
| SKU | 218988 |
| MPN | ICUSB2324 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
