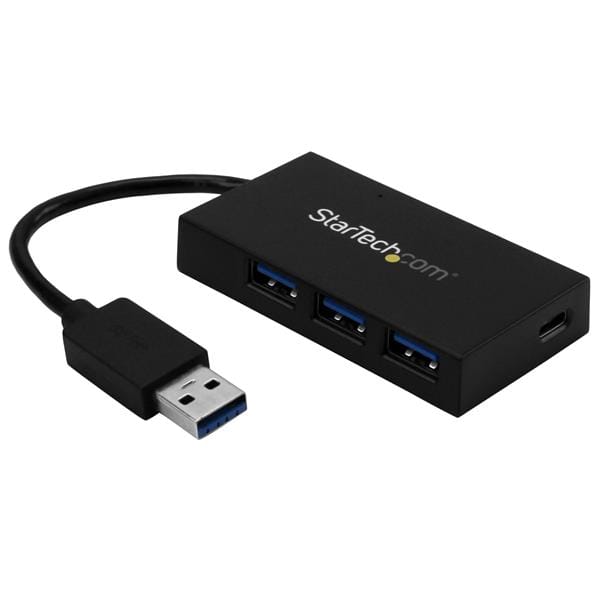

Here?s an easy way to connect a wider range of peripherals to your laptop. This 4-port USB 3.0 hub turns your laptop?s USB-A port into three USB-A charge-and-sync ports (5Gbps), and one USB-C™ port.
Now, you can use your laptop?s traditional USB Type-A port to expand your connectivity, fast-charge your smartphone or tablet, and connect your newer USB Type-C™ device to your laptop.
Expand your USB connectivity
This USB 3.0 hub lets you expand your USB connection options using the USB-A port on your computer. (USB 3.0 is also known as USB 3.1 Gen 1.) It offers three USB-A ports and one USB-C port, so you can still connect traditional USB devices now, and be ready to connect USB Type-C devices in the future.
It?s the ideal way to connect your new USB-C equipped device to your laptop?s traditional USB-A port.
Charge and sync your mobile devices
With three fast-charge ports, this hub helps ensure that your tablets and smartphones are charged and ready to use when you need them. Each USB-A port supports USB Battery Charging Specification 1.2, so you can charge and sync up to three devices simultaneously. (The charge provided depends on the number of devices connected and the amount of power each device draws. The hub?s USB-C port does not support charging.)
Designed for versatility
This self-powered USB hub comes with an external power adapter to support power-hungry USB devices, such as larger external drives and enclosures, which require more power than USB power can provide on its own. You can install the versatile USB 3.0 hub virtually anywhere, because it takes up minimal space on a desk, and fits perfectly in hot-desk or BYOD environments.
With its compact and lightweight design, the 4-port USB hub is also ideal for mobile use. You can simply tuck the hub and power adapter into your laptop bag to expand your connectivity when you?re traveling.
Save time and money
This hub can help if you need a way to connect your newer USB-C peripherals to your existing laptop. Now you can access your USB-C device while avoiding the cost of purchasing a newer laptop that features a USB Type-C port.
The self-powered USB 3.0 hub installs quickly with no additional drivers or software required, and it?s compatible with virtually all operating systems.
The HB30A3A1CSFS is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female |
| USB Type-A (9 pin) USB 3.0 Male | |
| USB Type-C (24 pin) USB 3.0 Female | |
| Environmental | |
| Humidity | 0%~90% RH (Non-condensing) |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Bus Type | USB 3.0 |
| Chipset ID | Genesys Logic - GL3522 |
| Fast-Charge Port(s) | Yes |
| Industry Standards | USB Battery Charging Specification Rev. 1.2 USB 3.0 - Backward compatible with USB 2.0 and 1.1 |
| Interface | USB 3.0 |
| Ports | 4 |
| USB-C Device Port(s) | Yes |
| USB-C Host Connection | No |
| Packaging Information | |
| Shipping (Package) Weight | 390 g [13.8 oz] |
| Performance | |
| Maximum Data Transfer Rate | 5 Gbps |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| Physical Characteristics | |
| Cable Length | 70 mm [2.8 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Form Factor | Compact |
| Product Height | 13 mm [0.5 in] |
| Product Length | 75 mm [3 in] |
| Product Weight | 40 g [1.4 oz] |
| Product Width | 40 mm [1.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 4 A |
| Output Voltage | 5 DC |
| Plug Type | B |
| Power Consumption (In Watts) | 20 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| Note | All ports support USB based video adapters including the USB-C port. This hub does not support DP Alt Mode (DisplayPort? Alt Mode) - non-USB based native video support over the USB Type-C port. |
| The hub does not support DP Alt Mode or USB Power Delivery. | |
| When USB-charged devices are connected to the hub, the provided charge output depends on the number of devices connected, and the amount of power each device draws. The hub?s USB-C port does not support charging. | |
| System and Cable Requirements | Available USB Type-A port - USB 3.0 (5Gbps) |
| What's in the Box | |
| Included in Package | 4-port USB 3.0 hub |
| universal power adapter (NA/JP, UK, EU, AU) | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | USB 3.2 Gen 1 (3.1 Gen 1) Type-A,USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Cable length How long the cable is. | 0.146 m |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
 |
| Certification | RoHS, CE, FCC, TAA |
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 4 A |
| Power plug type | Type B |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 74 mm |
| Depth The distance from the front to the back of something. | 38 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 39 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 165 mm |
| Package depth The distance from the front to the back of the packaging. | 49 mm |
| Package height The distance from the top to the bottom of the packaging. | 131 mm |
| Package weight Weight of the packaged product. | 376 g |
| Packaging content | |
| AC adapter included |
|
| Included power plug types | AU,EU,NA,UK |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Other features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Genesys Logic - GL3522 |
| SKU | 241577 |
| MPN | HB30A3A1CSFS |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
