7.1 Channel Audio, Max Res: 2560 x 1600 @ 60Hz

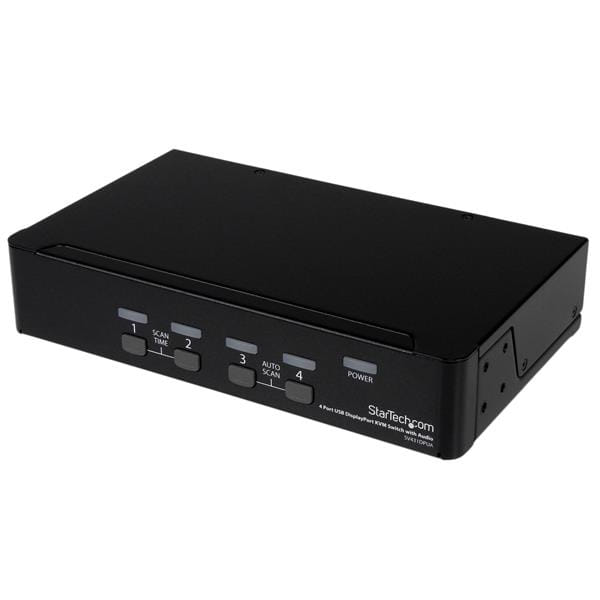

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.
Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.
Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.
A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Rackmount your KVM switch
If you?d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 0~80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 4 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Rack-Mountable | Optional |
| Indicators | |
| LED Indicators | Green - Online indicator (One LED per port) |
| Power | |
| Red - Select indicator (One LED per port) | |
| Packaging Information | |
| Shipping (Package) Weight | 1.7 kg [3.8 lb] |
| Performance | |
| DVI Support | Yes - Dual Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 2560 x 1600 @ 60Hz |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 130.6 mm [5.1 in] |
| Product Height | 44 mm [1.7 in] |
| Product Weight | 1100 g [38.8 oz] |
| Product Width | 220.7 mm [8.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 4-port DisplayPort KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/UK/EU/AU) | |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| Console ports | DisplayPort,3.5mm headphone,3.5mm mic,USB A |
| Console USB ports quantity | 4 |
| USB hub |
 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 5 |
| Number of microphone inputs | 5 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2400 pixels |
| Maximum digital resolution | 2560 x 1600 pixels |
| DDC2B support |
|
| Hot-Plug support Device has hot-plug capability, which means that user can replace system components without shutting down the system. |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Daisy chain |
 |
| Number of users The number of people that use or can use this product. | 1 user(s) |
| Audio channels | 7.1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators |
|
| Push button |
|
| Hot keys |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 136000 h |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, UL, TAA, REACH |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| On Screen Display (OSD) |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| External power adapter |
|
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 221 mm |
| Depth The distance from the front to the back of something. | 130.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Packaging data | |
| Package length | 15.75 |
| Package width The distance from one side of the packaging to the other. | 214 mm |
| Package depth The distance from the front to the back of the packaging. | 411 mm |
| Package height The distance from the top to the bottom of the packaging. | 87 mm |
| Package weight Weight of the packaged product. | 1.6 kg |
| Packaging content | |
| Manual |
|
| AC adapter included |
|
| Rubber feet |
|
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | 5x DisplayPort Female 4x USB Type A Female 4x USB Type B Female 8x Audio Female |
| Power requirements | 110 - 240V AC |
| Audio support |
|
| IP control |
|
| SKU | 214137 |
| MPN | SV431DPUA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
