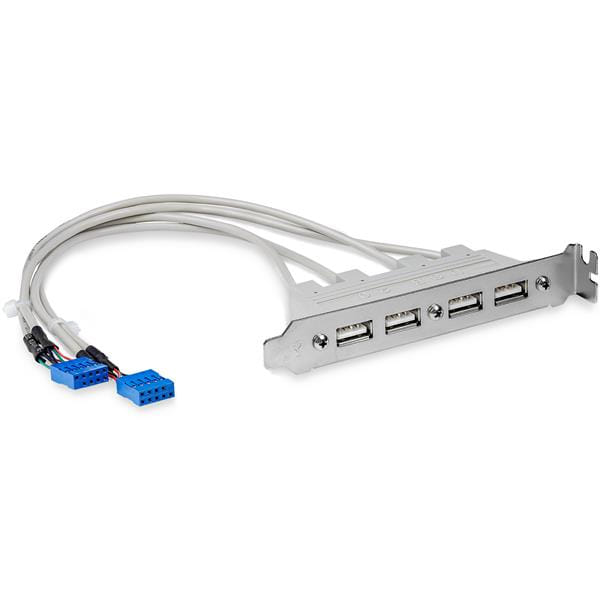

The USBPLATE4 4 port USB 2.0 slot plate adapter converts the USB pins on your motherboard into four USB-A female ports, enabling you to add USB connections to the back of your PC.
Backed by Lifetime Warranty, the USBPLATE4 is designed and constructed for maximum durability, to ensure dependable performance.
Please Note: Check your motherboard’s manual for the USB pinout diagram. The USBPLATE wiring scheme is: Red=Power, Green=Signal, White=Signal, Black=Ground
| Connector(s) | |
| Connector A | IDC (10 pin, Motherboard Header) Female |
| Connector B | USB Type-A (4 pin) USB 2.0 Female |
| Packaging Information | |
| Shipping (Package) Weight | 0.1 kg [0.2 lb] |
| Performance | |
| Type and Rate | USB 2.0 - 480 Mbit/s |
| Physical Characteristics | |
| Cable Length | 286 mm [11.3 in] |
| Product Weight | 68 g [2.4 oz] |
| What's in the Box | |
| Included in Package | 4 Port USB 2.0 Connector Backplate |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | IDC |
| Output interface The socket (port) where the output connectors are connected. | USB 2.0 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| Design | |
| Internal The product is built in. |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, UL, REACH |
| Features | |
| Data transfer rate (max) | 0.48 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -5 - 40 |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -5 - 80 |
| Operating relative humidity (H-H) | 20 - 60 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 68 |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 125 mm |
| Package depth The distance from the front to the back of the packaging. | 225 mm |
| Package height The distance from the top to the bottom of the packaging. | 22 mm |
| Package weight Weight of the packaged product. | 73 g |
| Other features | |
| Cable length How long the cable is. | 0.286 |
| Package length | 4.88 |
| SKU | 247716 |
| MPN | USBPLATE4 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
