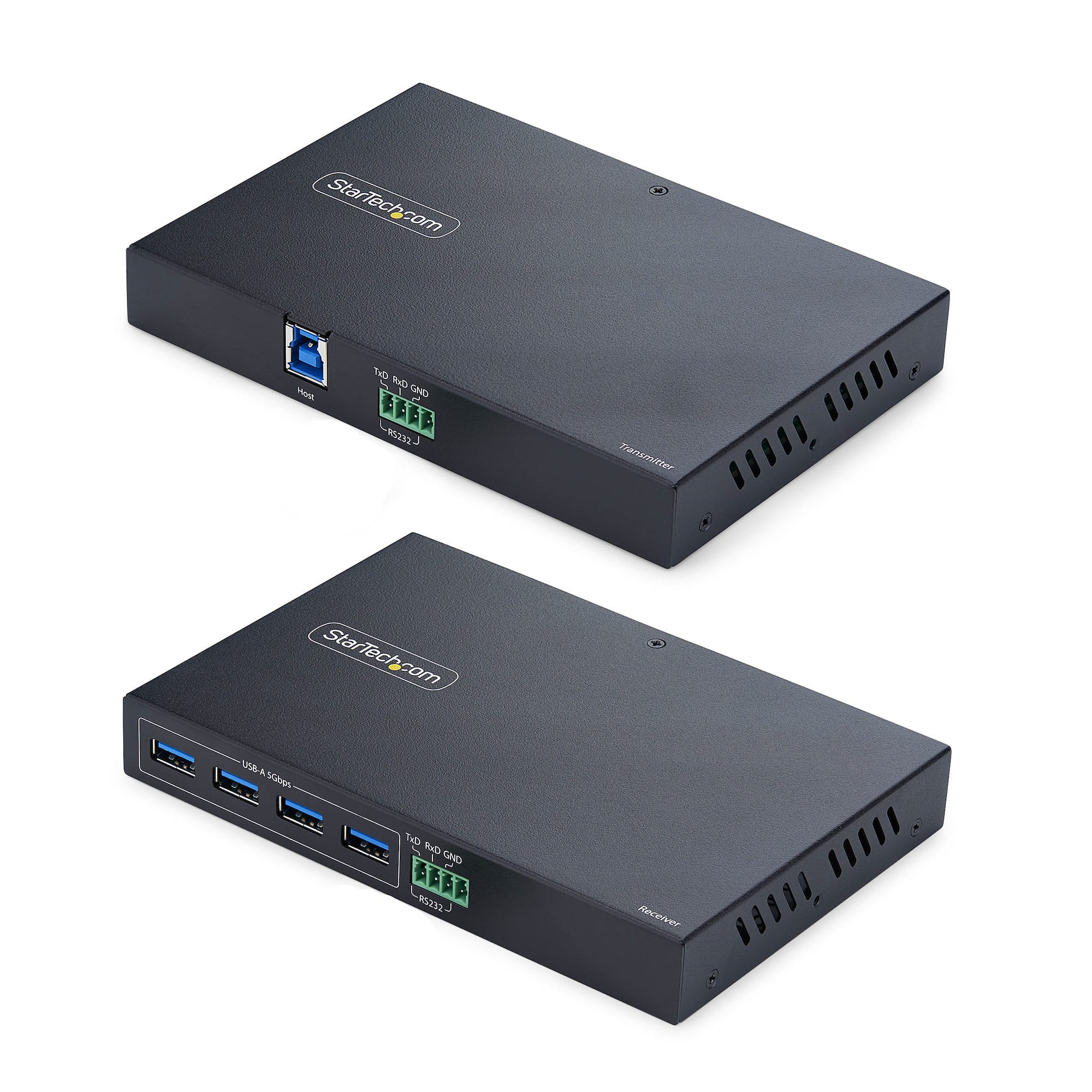

StarTech.com 4-Port USB 3.0 Extender over Ethernet up to 330ft (100m) via Cat6a / Cat7 / Cat8 RJ45 Cable, Extension for Remote USB Devices, 4x USB-A 5Gbps Hub, TAA, 100 mm, 150 mm, 20.5 mm, 350 g, 250 mm, 170 mm
Extend four USB 3.0 peripherals up to 330ft (100m) over Cat6a/Cat7/Cat8
USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.
Overcome USB Distance Limitations
This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.
Flexible Power Over Cable (PoC) Setup
Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.
Support Pro-Grade Integration
Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.
Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux.
USB 3.0 over Ethernet Extender Kit connects up to four USB peripherals to a host computer up to 330ft (100m) away via a single direct-run Cat6a, Cat7, or Cat8 RJ45 cable.
Overcome USB Distance Limitations
This compact extension adapter kit is ideal for extending the typical reach of USB cables beyond standard lengths. Use it to connect webcams, data acquisition tools, storage devices, and input peripherals in locations such as classrooms, kiosks, industrial workstations, or control rooms. The system supports USB 3.2 Gen 1 (5Gbps) data rates, delivering high-speed performance without sacrificing reliability over long distances.
Flexible Power Over Cable (PoC) Setup
Power either the transmitter or receiver unit with the included power adapter, as both devices share power via the Ethernet cable, simplifying setup and reducing the need for separate power sources at both ends of the link, especially useful in space-constrained or hard-to-access environments.
Support Pro-Grade Integration
Delivers 5Gbps speeds and features RS-232 passthrough for serial control in automation setups. Built with rugged metal housings for enhanced protection and durability.
Driverless and OS-independent, this point-to-point USB extender requires no software and is compatible with Windows, macOS, and Linux.
| Technical details | |
| Type Characteristics of the device. | Console transmitter & receiver |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 5000 Mbit/s |
| Maximum transfer distance The greatest distance over which the data/signal can be transferred. | 100 m |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators | Link, Power, Host |
| Cable types supported | Cat6a |
| Compliance certificates | Trade Agreements Act (TAA) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Micro-USB ports quantity | 2 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 2 |
| RJ-45 ports quantity | 2 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 150 mm |
| Height The measurement of the product from head to foot or from base to top. | 20.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 350 g |
| Package width The distance from one side of the packaging to the other. | 250 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 80 mm |
| Package weight Weight of the packaged product. | 1.2 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Cables included | USB Type-A to USB Type-B |
| Mounting kit |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| AC adapter included |
|
| Power | |
| Power source type What the power source is. | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 60 W |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Input current | 3 A |
| Output voltage | 20 V |
| Included power plug types | NA, JP, ANZ, UK, EU |
| Terminal block included |
|
| Logistics data | |
| Master (outer) case width | 535 mm |
| Master (outer) case length | 453 mm |
| Master (outer) case height | 380 mm |
| Products per master (outer) case | 20 pc(s) |
| SKU | 835848 |
| MPN | C10043-USB-EXTENDER |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
