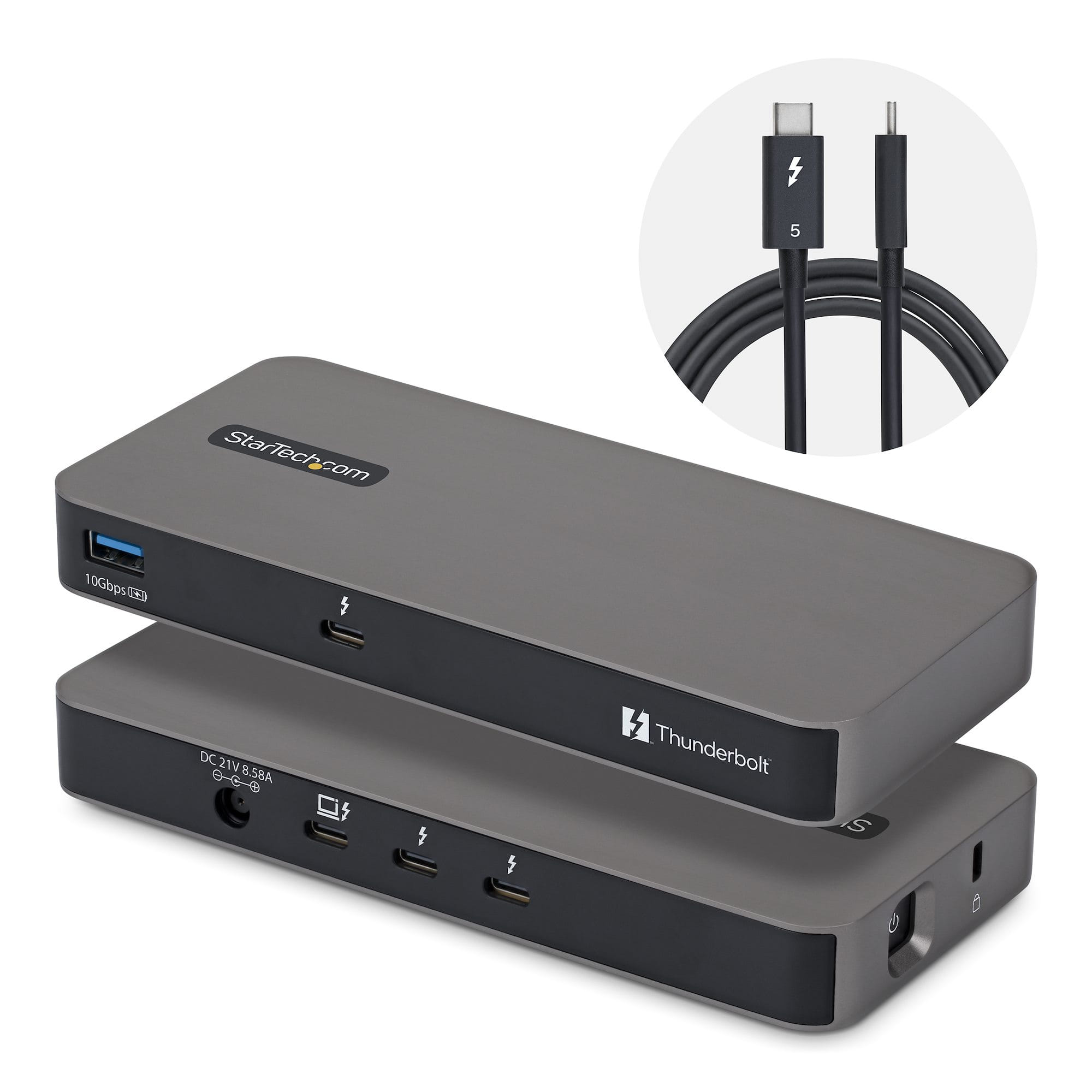

StarTech.com 4-Port Thunderbolt&trade
Thunderbolt&trade
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | Thunderbolt 5 |
| Hub interfaces A hub is a device for connecting multiple devices together. The hub interface is where the hub connects to other devices via input/output (I/O) ports. | Thunderbolt 5, USB 3.2 Gen 2 (3.1 Gen 2) Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Thunderbolt ports quantity The number of ports (sockets) for Thunderbolt connections. Thunderbolt is a hardware interface that allows for the connection of external peripherals to a computer. It uses the same connector as Mini DisplayPort (MDP). It was released in 2011 and is used in Apple's 2011 MacBook Pro, as well as other devices. | 3 |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 4 |
| Cable lock slot type | Kensington |
| Features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 80 Mbit/s |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 7680 x 4320 |
| Product colour The colour e.g. red, blue, green, black, white. | Grey |
| USB Power Delivery (USB PD) |
 |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 8K Ultra HD |
| LED indicators | Power |
| Network | |
| UASP support |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 180.18 W |
| Output voltage | 21 V |
| Output current | 8.58 A |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS 26 Tahoe, Mac OS X 15.0 Sequoia |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 77.5 mm |
| Depth The distance from the front to the back of something. | 172.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 451 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 235 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 99 mm |
| Package weight Weight of the packaged product. | 1.4 kg |
| Packaging content | |
| AC adapter included |
|
| Included power plug types | NA, JP, ANZ |
| Cables included | Thunderbolt |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Logistics data | |
| Master (outer) case width | 380 mm |
| Master (outer) case length | 310 mm |
| Master (outer) case height | 285 mm |
| Products per master (outer) case | 10 pc(s) |
| Technical details | |
| Compliance certificates Indicates which regulatory, safety, and environmental standards the product complies with, as verified by recognized authorities or certification bodies. | RoHS, CE, Federal Communications Commission (FCC) |
| Other features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Intel - JHL9480, Parade - FL5801, Infineon - CYPM1322, Infineon - CYPD8225 |
| SKU | 840463 |
| MPN | 303NA-TB5-HUB |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.startech.com/ |
