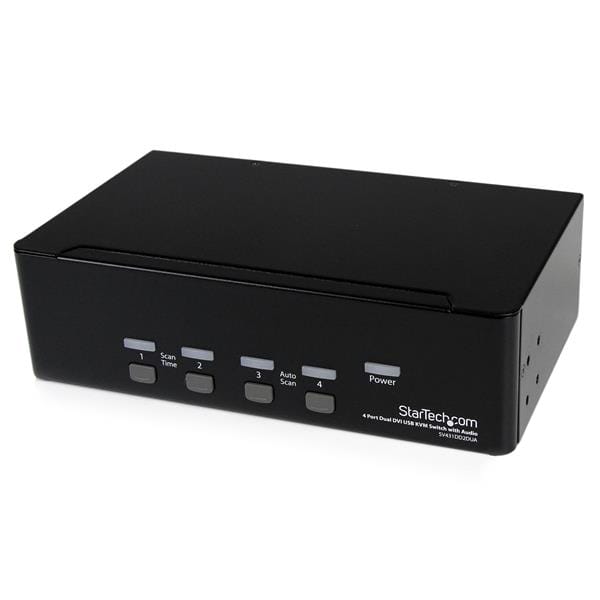

The SV431DD2DUA 4-port Dual DVI USB KVM Switch allows up to four PCs, each with dual DVI video outputs, to share two monitors, one microphone and set of speakers, one keyboard and one mouse as well as two other USB peripherals.
An ideal solution for graphic designers, CAD/CAM designers or educational and financial institutions, the dual view KVM Switch allows you to instantly switch back and forth between dual DVI display PCs at the touch of a button, while maintaining professional level video quality on both monitors. The dual DVI switch also features an integrated USB hub port that allows USB 2.0 peripherals such as thumb drives, external hard drives or web cams to be shared between attached systems - eliminating duplicate peripheral costs.
Please Note: While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs should output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support if you require assistance identifying your source.
Backed by a StarTech.com 3 year warranty and free lifetime technical support.
Rackmount your KVM switch
If you?d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 90% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 4 |
| Number of Monitors Supported | 2 |
| PC Interface | USB |
| PC Video Type | DVI |
| Rack-Mountable | Optional |
| Indicators | |
| LED Indicators | Green - Host Online, Red - Host Selected |
| Green - Power | |
| Packaging Information | |
| Shipping (Package) Weight | 1.8 kg [4 lb] |
| Performance | |
| DVI Support | Yes - Single Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 2048x1536 @85Hz |
| Maximum Digital Resolutions | 1920x1200 @60Hz |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 130 mm [5.1 in] |
| Product Height | 60 mm [2.4 in] |
| Product Weight | 1253 g [44.2 oz] |
| Product Width | 220 mm [8.7 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | 4-port dual DVI USB KVM |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/EU/UK/AU) | |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DVI-I |
| Console ports | 3.5mm headphone,3.5mm mic,DVI-I,USB A |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Number of microphone inputs | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| Maximum analog resolution | 2048 x 1536 pixels |
| Daisy chain |
|
| Number of users The number of people that use or can use this product. | 1 user(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators | Power |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, UL |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 220 mm |
| Depth The distance from the front to the back of something. | 130 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.25 kg |
| Packaging data | |
| Package length | 11.57 |
| Package width The distance from one side of the packaging to the other. | 295 mm |
| Package depth The distance from the front to the back of the packaging. | 245 mm |
| Package height The distance from the top to the bottom of the packaging. | 86 mm |
| Package weight Weight of the packaged product. | 1.88 kg |
| Packaging content | |
| Manual |
|
| AC adapter included |
|
| Rubber feet |
|
| Other features | |
| Power supply type The type of power supply which this product uses. | 115 V AC |
| I/O ports An interface on a device to which you can connect another device. | 10x 24 pin DVI-I F 4x USB A F 4x USB B F |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 98e/SE/ME/2000/XP/Vista, Linux, Mac OS |
| Power requirements | 9 V DC |
| IP control |
|
| SKU | 246036 |
| MPN | SV431DD2DUA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
