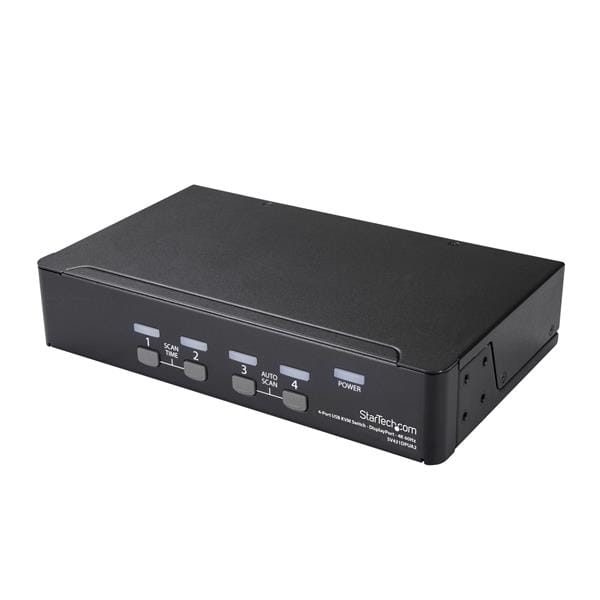

This 4-port DP KVM switch combines a 4K 60Hz display with KVM switch control of four connected PC and Mac computers - 4-Port USB KVM Switch - DisplayPort - 4K 60Hz
A simple yet comprehensive solution, this 4-port DisplayPort KVM switch combines 4K (60Hz) digital display capability with seamless KVM control of up to 4 connected PC computers and with Mini-DisplayPort adapters, it is also compatible with MAC computers and laptops, convertible notebooks, and tablets.
Astonishing picture quality
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease for maximum viewing space.
A convenient solution
Featuring audio and USB peripheral support along with both front-panel push-button and hotkey switching, and offering a small form factor with rear connection ports, this 4-port KVM switch will help to minimize workspace disruptions.
Cost-saving peripheral sharing
The integrated USB 2.0 hub lets you share two additional peripherals among attached computers as if they were directly connected. Sharing USB peripherals using the integrated hub eliminates the expense of duplicate devices such as printers, scanners, and so on.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rack-mountable KVM.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| USB Type-A (4 pin; HID Port) USB 1.1 Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DisplayPort (20 pin) Female | |
| USB B (4 pin) Female | |
| Environmental | |
| Humidity | 0% ~ 40% |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 4 |
| Number of Monitors Supported | 1 |
| PC Interface | USB |
| PC Video Type | DisplayPort |
| Rack-Mountable | Optional |
| U Height | 1U |
| Indicators | |
| LED Indicators | Green - Online indicator (One LED per port) |
| Power | |
| Red - Select indicator (One LED per port) | |
| Packaging Information | |
| Shipping (Package) Weight | 1605 g [56.7 oz] |
| Performance | |
| Auto Scan | 3, 8, 15 & 30 seconds |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Data Transfer Rate | 480 Mbps (USB 2.0) |
| Maximum Digital Resolutions | 3840 x 2160 (Ultra HD 4K) @ 60hz |
| Maximum Number of Users | 1 |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 45 mm [1.8 in] |
| Product Length | 220 mm [8.7 in] |
| Product Weight | 1042 g [36.8 oz] |
| Product Width | 131 mm [5.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1.5 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 W |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent: No software or drivers required |
| What's in the Box | |
| Included in Package | foot pads |
| KVM switch | |
| quick-start guide | |
| universal power adapter (NA/JP, EU, UK, ANZ) | |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 4 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | DisplayPort |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 5 |
| USB 2.0 Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone,3.5mm mic,DisplayPort,USB A |
| Console USB ports quantity | 4 |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 5 |
| Number of microphone inputs | 5 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Daisy chain |
|
| Number of users The number of people that use or can use this product. | 1 user(s) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators |
|
| Hot keys |
|
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 138327 h |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, TAA, REACH |
| Display | |
| On Screen Display (OSD) |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Input current | 0.6 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| External power adapter |
|
| Power plug type | Type M |
| Compatible power plug types | AU,EU,JP,UK,US |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 40% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 131 mm |
| Depth The distance from the front to the back of something. | 220 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 212 mm |
| Package depth The distance from the front to the back of the packaging. | 409 mm |
| Package height The distance from the top to the bottom of the packaging. | 87 mm |
| Package weight Weight of the packaged product. | 1.6 kg |
| Packaging content | |
| Quick installation guide |
|
| AC adapter included |
|
| Rubber feet |
|
| Logistics data | |
| Master (outer) case width | 43.3 cm |
| Master (outer) case length | 54.5 cm |
| Master (outer) case height | 25.8 cm |
| Quantity per master (outer) case | 6 pc(s) |
| Other features | |
| Audio support |
|
| IP control |
|
| SKU | 263641 |
| MPN | SV431DPUA2 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
