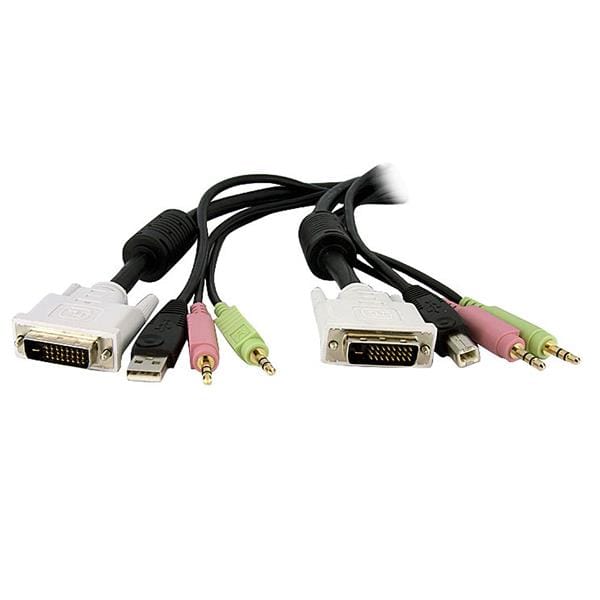

The DVID4N1USB15 15ft 4-in-1 USB Dual Link DVI-D KVM Switch Cable w/ Audio & Microphone integrates dual link DVI video quality with USB mouse and keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The four-in-one DVI KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by a StarTech.com Lifetime Warranty.
Works with:
Compatible StarTech.com KVMs can be found under the Accessories section.
Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Male |
| DVI-D (25 pin) Male | |
| USB Type-A (4 pin) USB 2.0 Male | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Male |
| DVI-D (25 pin) Male | |
| USB B (4 pin) Male | |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Packaging Information | |
| Shipping (Package) Weight | 0.9 kg [2 lb] |
| Physical Characteristics | |
| Cable Length | 4.6 m [15 ft] |
| Color | Black |
| Product Height | 15.5 mm [0.6 in] |
| Product Length | 4.6 m [15 ft] |
| Product Weight | 874 g [30.9 oz] |
| Product Width | 39.5 mm [1.6 in] |
| What's in the Box | |
| Included in Package | 4-n-1 DVI-D USB KVM Cable |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 4.57 m |
| Connector 1 This is the first connector in the device. | 1x 25 pin DVI-D, 2x 3.5 mm Stereo, 1x USB |
| Connector 2 This is the second connector in the device. | 1x 25 pin DVI-D, 2x 3.5 mm Stereo, 1x USB |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Packaging data | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 930 g |
| Package length | 12.80 |
| Package width The distance from one side of the packaging to the other. | 250 mm |
| Package depth The distance from the front to the back of the packaging. | 325 mm |
| Package height The distance from the top to the bottom of the packaging. | 70 mm |
| Package weight Weight of the packaged product. | 885 g |
| SKU | 240975 |
| MPN | DVID4N1USB15 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
