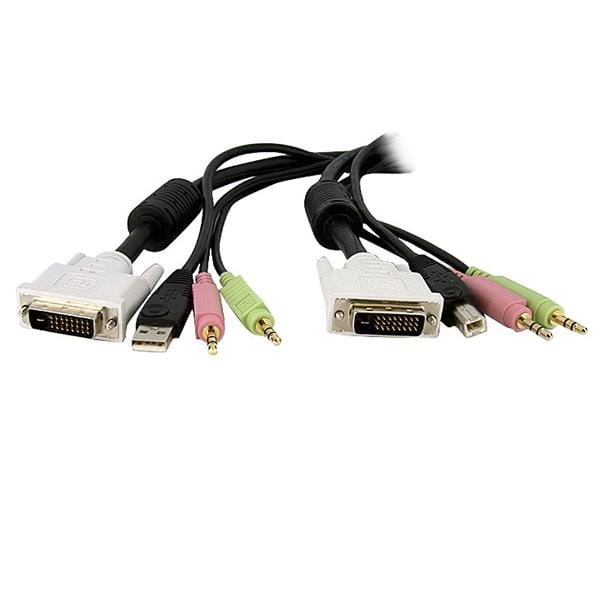

This 10ft four-in-one DVI/USB KVM cable integrates dual link DVI video quality with USB mouse and keyboard, 3.5mm audio out and microphone connections into a single, compact cable.
The 4-in-1 KVM cable is a cost-effective and convenient solution that's suitable for use with dual link DVI supported USB KVM switches, allowing you to share a USB peripheral set between two computers configured for high definition output.
Backed by our Lifetime Warranty, the DVI/USB KVM cable provides guaranteed performance for dependable operation.
Works with:
Compatible StarTech.com KVMs can be found under the Accessories section.
Aten models (CS1642, CS1644, CS1784, CS1782, CS1762, CS1764)
Avocent models (2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540)
Belkin models (F1DN102D, F1DN104D, F1DD102L, F1DD104L)
Cables to go models (52047, 52048)
| Connector(s) | |
| Connector A | 3.5 mm Mini-Jack (3 Position) Male |
| DVI-D (25 pin) Male | |
| USB Type-A (4 pin) USB 2.0 Male | |
| Connector B | 3.5 mm Mini-Jack (3 Position) Male |
| DVI-D (25 pin) Male | |
| USB B (4 pin) Male | |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Packaging Information | |
| Shipping (Package) Weight | 0.7 kg [1.5 lb] |
| Physical Characteristics | |
| Cable Length | 3 m [10 ft] |
| Color | Black |
| Product Length | 3 m [10 ft] |
| Product Weight | 678 g [23.9 oz] |
| What's in the Box | |
| Included in Package | 4-n-1 Dual Link DVI-D USB KVM Cable with Audio |
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | 1 x DVI-D, 1 x USB A, 2 x 3.5 mm |
| Connector 2 This is the second connector in the device. | 1 x DVI-D, 1 x USB B, 2 x 3.5 mm |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 2560 x 1600 pixels |
| Compatible products Other products that can be used with this product. | Aten - CS1642, CS1644, CS1784, CS1782, CS1762, CS1764 Avocent - 2SVDVI10-001, 4SVDVI10-001, SV4UAD, SC420, SC440, SC540 Belkin - F1DN102D, F1DN104D, F1DD102L, F1DD104L Cables to go - 52047, 52048 |
| Packaging data | |
| Package length | 9.25 |
| Package width The distance from one side of the packaging to the other. | 255 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 40 mm |
| Package weight Weight of the packaged product. | 644 g |
| SKU | 240968 |
| MPN | DVID4N1USB10 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
