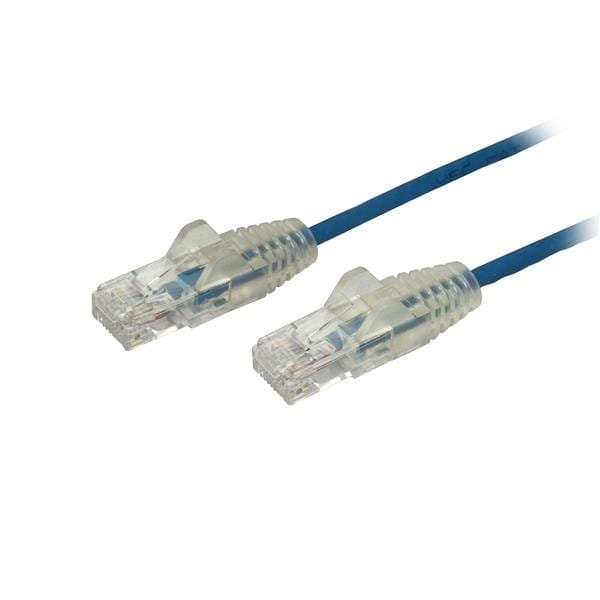

Slim CAT6 Patch Cable; Snagless; 28 AWG Copper Wire; LSZH; Slim CAT6 Ethernet Cable; Blue
This nbsp;slim CAT6 cable meets all Category 6 patch cable specifications to deliver a reliable Gigabit network connection in high-density data center applications.
Easy Cable Runs
The design of This slim CAT6 patch cord is 36% thinner than standard networking cables, which allows better airflow and heat dissipation in tight spaces. The cable is also more flexible than standard Ethernet cables, so cable runs are easier in crowded network racks.
This cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break as you pull them through narrow spaces.
Protect Your Equipment
This CAT6 patch cable is tested to comply with ANSI/TIA 568 C.2 Category 6 requirements ensuring a reliable connection to your networking equipment. Certified with Low Smoke Zero Halogen (LSZH) fire rating, This patch cord ensures a safe connection.
The 50-micron gold connectors on the patch cable deliver optimum conductivity and eliminate signal loss due to oxidation or corrosion.
High-Quality Construction
Each CAT6 cable is manufactured using high-quality copper conductors and is carefully constructed and tested to keep Near-End Crosstalk (NEXT) well within acceptable limits. Plus, each cable is built with 28 AWG copper wire, to ensure peak performance for your demanding Ethernet applications.
N6PAT300CMBLS is backed by Startech lifetime warranty and free lifetime technical support.
| Performance | |
| Cable Rating | CAT6 - 250 MHz |
| Physical Characteristics | |
| Cable Length | 3 m [9.8 ft] |
| Color | Blue |
| Conductor Type | Stranded Copper |
| Product Height | 1 cm [0.4 in] |
| Product Length | 3 m [9.8 ft] |
| Product Width | 40 mm [1.6 in] |
| Weight of Product | 53 g [1.9 oz] |
| Wire Gauge | 28 AWG |
| Prominence | |
| Description CDW 75 - 1st Line | Startech 3m CAT6 Cable - Blue Slim CAT6 Patch Cord - Snagless - LSZH |
| What's in the Box | |
| Included in Package | 3 m Slim CAT6 Cable |
| Packaging Information | |
| Shipping (Package) Weight | 61 g [2.2 oz] |
| Package Width | 22 cm [8.7 in] |
| Package Length | 20 cm [7.9 in] |
| Package Height | 0.1 mm [0 in] |
| Hardware | |
| Wiring Standard | TIA/EIA-568-B.1-2001 T568B |
| Number of Conductors | 4 pair UTP |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Connector Plating | Gold |
| Cable Type | Snagless |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Connector(s) | |
| Connector B | RJ-45 Male |
| Connector A | RJ-45 Male |
| Features | |
| Cable colour Colour of the cable e.g. white, gray. | Blue |
| Cable length How long the cable is. | 3 m |
| Cable standard The category of the cable, which is determined by performance characteristics and test requirements. | Cat6 |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/UTP (UTP) |
| Connector 1 This is the first connector in the device. | RJ-45 |
| Connector 2 This is the second connector in the device. | RJ-45 |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Jacket material | Polyvinyl chloride (PVC) |
| Conductor type | Stranded |
| AWG wire size | 28 |
| Frequency | 250 MHz |
| Snagless cable boot |
 |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Halogen-free |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | REACH, CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 40 mm |
| Height The measurement of the product from head to foot or from base to top. | 10 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 53 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 220 mm |
| Package depth The distance from the front to the back of the packaging. | 200 mm |
| Package weight Weight of the packaged product. | 61 g |
| SKU | 401282 |
| MPN | N6PAT300CMBLS |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
