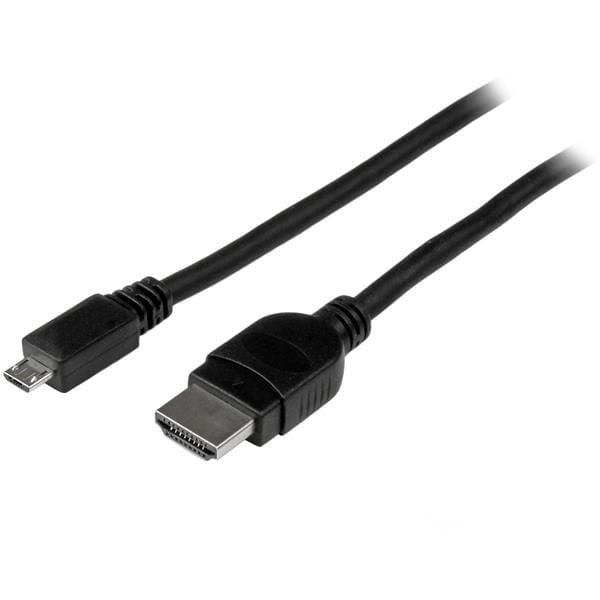

The MHDPMM3M 3m Passive Micro USB to HDMI® MHL™ Cable lets you connect your MHL-enabled smartphone, tablet PC or other mobile device to your MHL-enabled HDTV display, monitor, or projector.
This durable cable offers a simple plug-and-play solution for viewing content (e.g. photos, audio and video) from an MHL-enabled mobile device on a large display, and home entertainment system.
Delivering on both quality and convenience, this MHL to HDMI cable supports 1080p video resolution and 7.1 channel digital audio output while simultaneously charging your mobile device when in MHL mode and while connected to your MHL-enabled display.
The MHDPMM3M MHL Cable is backed by StarTech.com?s Lifetime Warranty, for guaranteed reliability.
Note: As this is a passive cable, your mobile device as well as your HDTV display, monitor, or projector, etc. must be MHL-enabled. Please refer to your devices owner?s manual and/or visit the MHL consortium website for a list of MHL Enabled Products. This product will not work with devices that have an 11 pin MHL connector, such as the Samsung S3 and S4 models.
| Connector(s) | |
| Connector A | HDMI (19 pin) Male |
| Connector B | USB Micro-B (5 pin) Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Gold |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 132 g [4.7 oz] |
| Physical Characteristics | |
| Cable Length | 3 m [9.8 ft] |
| Color | Black |
| Connector Style | Straight |
| Product Height | 8 mm [0.3 in] |
| Product Length | 3 m [9.8 ft] |
| Product Weight | 124 g [4.4 oz] |
| Product Width | 12 mm [0.5 in] |
| Wire Gauge | 24/30 AWG |
| What's in the Box | |
| Included in Package | Passive 3 m MHL Cable |
| Features | |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Gold |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | HDMI |
| Connector 2 This is the second connector in the device. | Micro USB Type-B |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1080 pixels |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| Maximum refresh rate | 60 Hz |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 24/30 |
| Supported audio channels | 7.1 |
| Cable shielding The protective layer for the cable, typically made of plastic. | Aluminum mylar foil |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE, REACH |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 20 mm |
| Package weight Weight of the packaged product. | 132 g |
| Package length | 8.66 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 124 g |
| Width The measurement or extent of something from side to side. | 12 mm |
| Height The measurement of the product from head to foot or from base to top. | 8 mm |
| SKU | 243173 |
| MPN | MHDPMM3M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
