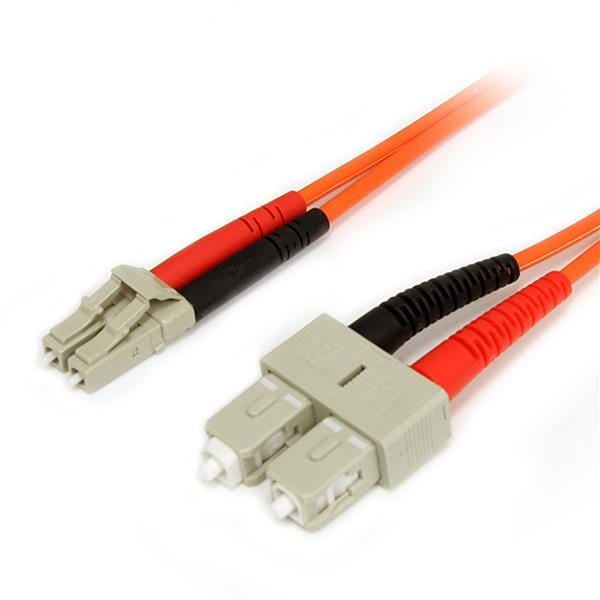

The FIBLCSC3 3-meter (10ft) Multimode 62.5/125 Duplex Fiber Patch Cable is terminated with one LC (male) connector and one SC (male) connector, to provide the necessary connection between fiber networking devices for high-speed, long distance networks.
This LC-SC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire. Making it ideal for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
To ensure optimum performance, our multimode fiber duplex cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability.
Backed by Lifetime Warranty, our LC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability, and top quality performance.
| Connector(s) | |
| Connector A | Fiber Optic LC Duplex Male |
| Connector B | Fiber Optic SC Duplex Male |
| Hardware | |
| Fiber Size | 62.5/125 |
| Fire Rating | LSZH Rated (Low Smoke Zero Halogen) |
| Packaging Information | |
| Shipping (Package) Weight | 0 kg [0.1 lb] |
| Performance | |
| Fiber Classification | OM1 |
| Fiber Type | Multi Mode |
| Physical Characteristics | |
| Cable Length | 3 m [9.8 ft] |
| Color | Orange |
| Product Length | 3 m [9.8 ft] |
| What's in the Box | |
| Included in Package | 3m Multimode 62.5/125 Duplex Fiber Patch Cable LC - SC |
| Features | |
| Cable length How long the cable is. | 3 m |
| Connector 1 This is the first connector in the device. | LC |
| Connector 2 This is the second connector in the device. | SC |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Cable colour Colour of the cable e.g. white, gray. | Orange |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Core diameter The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire. | 62.5 µm |
| Cladding diameter The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire. | 125 µm |
| Fiber mode structure | Multi-mode |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 26 mm |
| Package weight Weight of the packaged product. | 63 g |
| Other features | |
| Core / cladding diameter | 62.5/125 µm |
| Connector(s) | LC-SC |
| Package length | 7.83 |
| SKU | 241367 |
| MPN | FIBLCSC3 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
