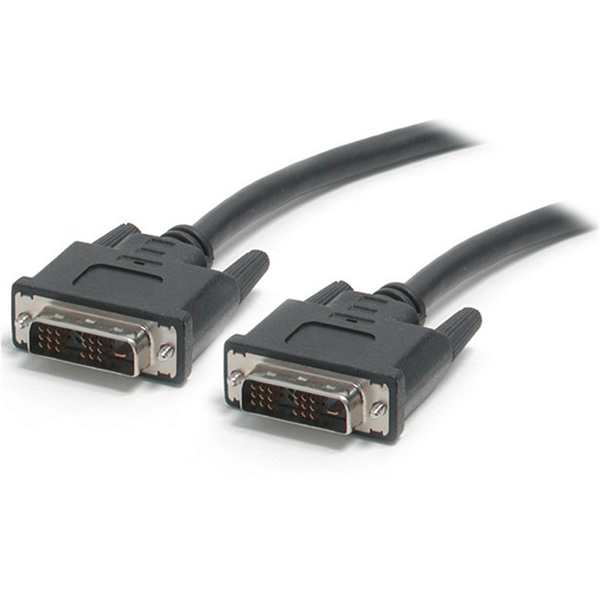

The DVIMM3 DVI-D Single Link cable features 2 male DVI (19-pin) connectors and offers 3 feet in cable length, making it perfect for shorter connections between your desktop or laptop computer and a DVI-D monitor or projector.
The 3ft DVI-D male to male cable supports resolutions of up to 1920x1200 and transmission rates of up to 4.95 Gbits/sec and is fully compliant with DVI DDWG standards.
Designed and constructed for maximum durability, this high quality digital video cable is backed by StarTech.com's Lifetime Warranty.
| Connector(s) | |
| Connector A | DVI-D (19 pin) Male |
| Connector B | DVI-D (19 pin) Male |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 130 g [4.6 oz] |
| Physical Characteristics | |
| Cable Length | 0.9 m [3 ft] |
| Color | Black |
| Connector Style | Straight |
| Product Height | 15.5 mm [0.6 in] |
| Product Length | 0.9 m [3 ft] |
| Product Weight | 124 g [4.4 oz] |
| Product Width | 39.5 mm [1.6 in] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 3 ft DVI-D Single Link Cable - M/M |
| Features | |
| Cable length How long the cable is. | 0.9 m |
| Connector 1 This is the first connector in the device. | DVI-D |
| Connector 2 This is the second connector in the device. | DVI-D |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 4.95 Gbit/s |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| AWG wire size | 28 |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 129.4 g |
| Package width The distance from one side of the packaging to the other. | 125 mm |
| Package depth The distance from the front to the back of the packaging. | 225 mm |
| Package height The distance from the top to the bottom of the packaging. | 25 mm |
| Other features | |
| Package length | 8.86 |
| SKU | 241087 |
| MPN | DVIMM3 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
