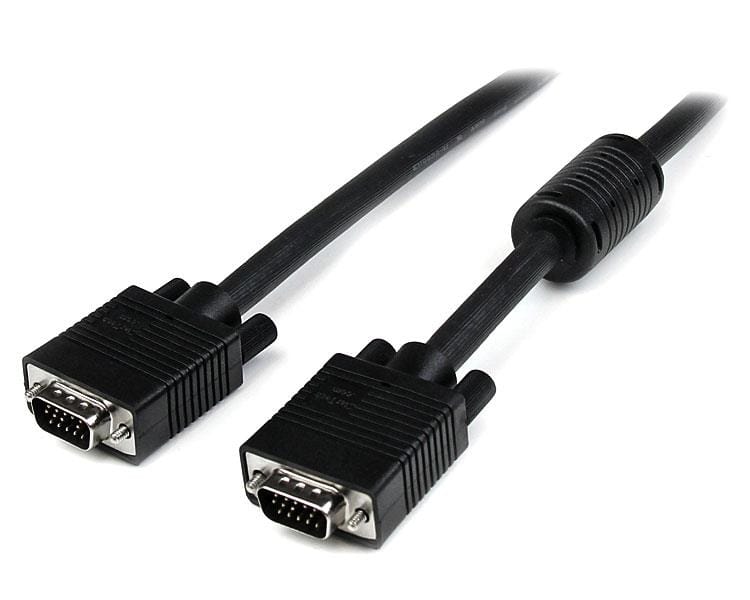

The MXTMMHQ30M High Resolution VGA Cable (30-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
| Connector(s) | |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
| Connector B | VGA (15 pin, High Density D-Sub) Male |
| Environmental | |
| Humidity | 0 - 80 %RH |
| Operating Temperature | 0 to 60 ?C |
| Storage Temperature | -20 to 80 ?C |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Cable Shield Type | Aluminum-Mylar Foil with Braid |
| Connector Plating | Nickel |
| Fire Rating | CMG Rated (General Purpose) |
| Number of Conductors | 14 |
| Number of Ferrites | 1 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 2.8 kg [6.1 lb] |
| Physical Characteristics | |
| Cable Length | 30 m [98.4 ft] |
| Color | Black |
| Product Length | 30 m [98.4 ft] |
| Product Weight | 2.7 kg [6 lb] |
| Wire Gauge | 28 AWG |
| What's in the Box | |
| Included in Package | 30m Coax High Resolution Monitor VGA Cable - HD15 M/M |
| Nuts | |
| Features | |
| Cable length How long the cable is. | 30 m |
| Connector 1 This is the first connector in the device. | VGA (D-Sub) |
| Connector 2 This is the second connector in the device. | VGA (D-Sub) |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Other features | |
| Package length | 18.11 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.9 kg |
| Package width The distance from one side of the packaging to the other. | 350 mm |
| Package depth The distance from the front to the back of the packaging. | 460 mm |
| Package height The distance from the top to the bottom of the packaging. | 81 mm |
| Package weight Weight of the packaged product. | 2.76 kg |
| SKU | 243488 |
| MPN | MXTMMHQ30M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
