Maximum Data Transfer Rate:800 Mbps

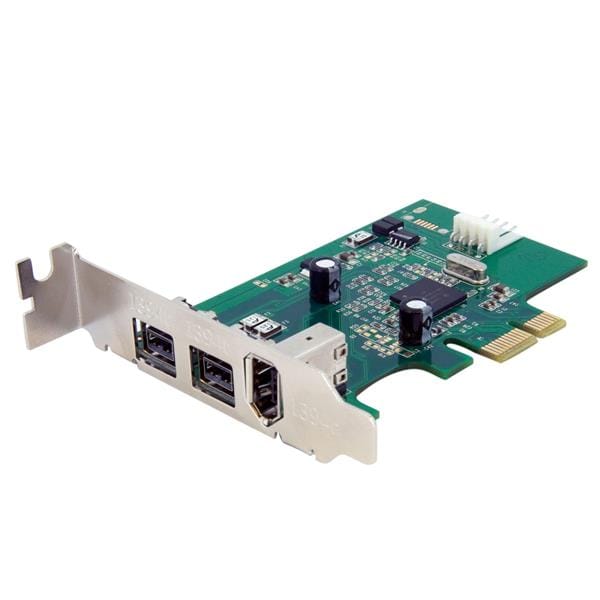

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | FireWire 400 (6 pin, IEEE 1394a) Female |
| FireWire 800 (9 pin, IEEE 1394b) Female | |
| Internal Ports | SP4 (4 pin, Small Drive Power) Male |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0?C to 70?C (32?F to 158?C) |
| Storage Temperature | -20?C to 90?C (-4?F to 194?C) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | LSI/Agere - FW643 |
| Interface | FireWire 800 (1394b) |
| Ports | 3 |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 190 g [6.7 oz] |
| Performance | |
| Maximum Data Transfer Rate | 800 Mbps |
| Type and Rate | FireWire 800 IEEE-1394b - 800 Mbit/s |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 90 mm [3.5 in] |
| Product Weight | 40 g [1.4 oz] |
| Product Width | 58 mm [2.3 in] |
| Software | |
| OS Compatibility | Windows? 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Mac OS? 10.6 to 10.12 Linux 3.5.x to 4.4.x LTS Versions Only |
| Special Notes / Requirements | |
| System and Cable Requirements | PCI Express enabled computer with an available PCI Express x1 slot or higher |
| What's in the Box | |
| Included in Package | FireWire Cable |
| Full Profile Bracket | |
| Instruction Manual | |
| PCI Express FireWire Card | |
| Software CD | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | IEEE 1394/Firewire |
| Firewire (IEEE 1394) ports Number of IEEE 1394/FireWire ports (connecting interfaces) in the device. The IEEE 1394 interface is a serial bus interface standard for high-speed communications and isochronous real-time data transfer. It was developed in the late 1980s and early 1990s by Apple, who called it FireWire. The 1394 interface is comparable to USB though USB has more market share. Apple first included FireWire in some of its 1999 models, and most Apple computers since the year 2000 have included FireWire ports, though, as of 2013, only the 800 version (IEEE-1394b). | 3 |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
| Connector(s) | 2x 9-pin FireWire 800 FM, 1x 6-pin FireWire FM, 1x 4-pin SP4 M |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Hot-swap |
|
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | LSI/Agere - FW643 |
| Data transfer rate (max) | 0.8 Gbit/s |
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 90 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 58 mm |
| Depth The distance from the front to the back of something. | 90 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 40 g |
| Packaging data | |
| Cables included | FireWire |
| Mounting brackets included |
|
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 175 mm |
| Package depth The distance from the front to the back of the packaging. | 144 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 200 g |
| Other features | |
| Platform Description of a technology platform including a processor, chipset, platform software and wired networking capabilities. | PC |
| Form factor The shape or design of the product. | LP |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 2000, XP(32/64bit), 2003(32/64bit), Vista(32/64bit), 7(32/64bit) Mac G5 OS 10.2.4 + Linux |
| Package length | 6.89 |
| SKU | 210875 |
| MPN | PEX1394B3LP |
| Brand | Startech |
