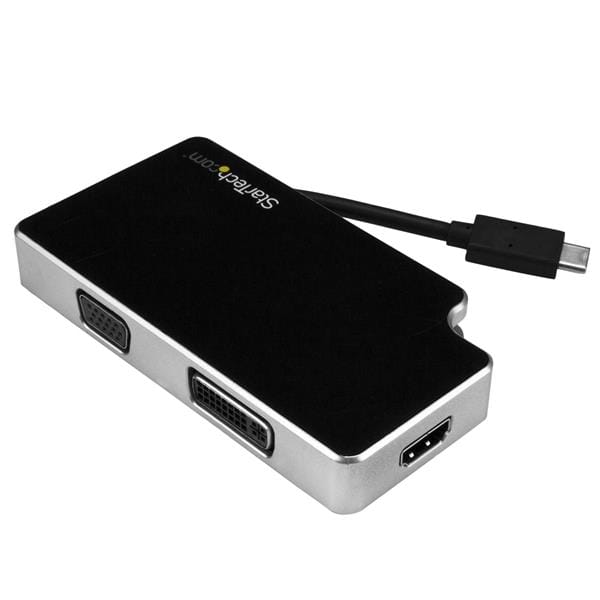

This 3-in-1 travel adapter offers a portable solution for connecting your USB-C computer to a VGA, DVI, or HDMI® display.
The travel adapter is compatible with your DP alt mode computer. DP alt mode means your computer can pass a DisplayPort video signal through the USB-C port.
Stylish connectivity for your USB-C laptop
This travel adapter comes with a built-in black USB-C cable and works well with your Dell XPS™, MacBook and any device that supports USB-C DP alt mode.
All-in-one video connectivity, with travel in mind
Instead of carrying three separate video adapters in your laptop bag, this 3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port to almost any boardroom or classroom display, without the inconvenience of carrying a separate adapter for each display type.
With support for multiple video outputs and a small-footprint design, this adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own Device) applications around the office.
Innovative, built-in cable manager
The adapter features a built-in cable fastener. Simply tuck the cable into place along the side of the adapter for quick and secure storage while you?re traveling to ensure the adapter is neatly stored in your travel bag.
Astonishing picture quality
The HDMI output on this travel adapter supports Ultra HD 4K resolutions, providing four times the picture quality of high-definition 1080p. The HDMI output is also backward compatible with lower resolutions, such as 1080p and 720p, so the adapter is also perfect for your legacy video equipment. The VGA and DVI outputs also support high-definition maximum resolutions of up to 1920 x 1200, so you can still enjoy excellent video quality.
The travel adapter is compatible with USB Type-C Intel® Thunderbolt™ 3 devices that are capable of outputting a DisplayPort signal.
The CDPVGDVHDB is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | USB-C (24 pin) DisplayPort Alt Mode Male Input |
| Connector B | DVI-I (29 pin) Female Output |
| HDMI (19 pin) Female Output | |
| VGA (15 pin, High Density D-Sub) Female Output | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Storage Temperature | -40?C to 70?C (-40?F to 158?F) |
| Hardware | |
| Adapter Style | Adapters |
| Converter Type | Travel A/V Adapters |
| Output Signal | DVI-D (DVI Digital) |
| HDMI | |
| VGA | |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Audio Specifications | HDMI output - 7.1 surround sound |
| General Specifications | Only one video output is supported on the video adapter at a time. If multiple connections are made, only one of the outputs will function. |
| Maximum Analog Resolutions | 1920 x 1200 |
| Maximum Digital Resolutions | 3840 x 2160 @ 30Hz |
| Supported Resolutions | HDMI output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280 x 720 DVI and VGA output: 1920 x 1200, 1920 x 1080, 1280 x 720 |
| Video Revision | DisplayPort 1.2 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Accent Color | Black |
| Cable Length | 90 mm [3.5 in] |
| Enclosure Type | Aluminum |
| Product Height | 18 mm [0.7 in] |
| Product Length | 110 mm [4.3 in] |
| Product Weight | 67 g [2.4 oz] |
| Product Width | 60 mm [2.4 in] |
| What's in the Box | |
| Included in Package | USB-C travel adapter |
| Performance | |
| DVI output |
 |
| HDMI output The device features an HDMI output. |
|
| DisplayPort output The device features a DisplayPort (DP) output to accomodate a standardized digital display interface used to connect a video source to a display device such as a computer monitor, and it can also carry audio, USB, and other forms of data. |
 |
| Number of displays supported The number of displays that can be used with this product. | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-C |
| USB connector gender | Male |
| VGA (D-Sub) output |
|
| DVI connector type | DVI-I |
| HDMI version | 1.4 |
| DisplayPort version | 1.2 |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Refresh rate at maximum resolution | 30 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160 |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | Cypress - CYPD2120-24LQXIT, Cypress - CY7C65217, Analogix - ANX9847FN-AA-R, MegaChips - MCDP2850-BC |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Silver |
| Housing material What the casing of the product is made of. | Plastic |
| Integrated USB cable |
|
| USB cable length | 0.09 m |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 60 mm |
| Depth The distance from the front to the back of something. | 110 mm |
| Height The measurement of the product from head to foot or from base to top. | 18 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 67 g |
| Package width The distance from one side of the packaging to the other. | 144 mm |
| Package depth The distance from the front to the back of the packaging. | 174 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 165 g |
| SKU | 240380 |
| MPN | CDPVGDVHDB |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
