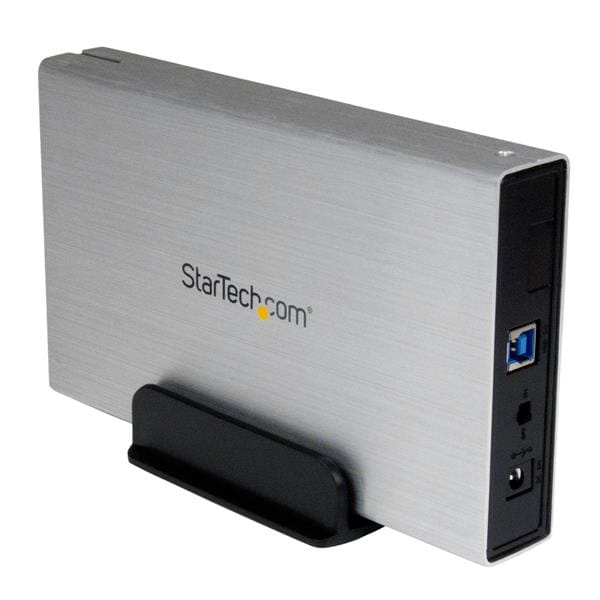

The S3510SMU33 USB 3.0 hard drive enclosure enables you to connect a 3.5in SATA hard drive through an available USB port.
With support for UASP, the enclosure performs up to 70% faster than conventional USB 3.0, when paired with a UASP-enabled host controller to utilize the full potential of your SATA III hard drives. See our UASP testing results below for further details.
The HDD enclosure offers a versatile solution for increasing the storage/backup capabilities of your computer, with support for SATA I/II/III hard drives at capacities of up to 4TB. Plus, the enclosure features high-quality aluminum construction and a stylish silver design that looks great in any application.
To ensure compatibility with your computer system, the S3510SMU33 supports all of the leading operating systems, including: Microsoft Windows® (8/7/Vista/XP/Server 2008/Server 2003), Apple® OSX (10.9/10.8/10.7/10.6), Linux, and Google Chrome OS™.
The S3510SMU33 USB 3.0 HDD enclosure is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Improved Performance with UASP
UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.
At the same peak in testing UASP also shows an 80% reduction in required processor resources.
Testing results were obtained using an Intel® Ivy Bridge system, a UASP enabled StarTech.com Enclosure, and a SATA III solid state drive.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) Receptacle |
| Host Connectors | USB Type-B (9 pin) USB 3.0 Female |
| Environmental | |
| Humidity | Operation Humidity: 10% ~ 90% RH Storage Humidity: 5% ~ 95% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 65?C (14?F to 149?F) |
| Hardware | |
| Chipset ID | ASMedia - ASM1053 - 6G |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Drive Size | 3.5in |
| Fan(s) | No |
| Interface | USB 3.0 |
| Number of Drives | 1 |
| Indicators | |
| LED Indicators | Power & Activity |
| Packaging Information | |
| Shipping (Package) Weight | 0.8 kg [1.7 lb] |
| Performance | |
| Max Drive Capacity | Currently tested with up to 4TB 7200 RPM hard drive |
| RAID | No |
| Type and Rate | SATA III (6 Gbps) |
| USB 3.0 - 5 Gbit/s | |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Silver |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 115.4 mm [4.5 in] |
| Product Length | 191.5 mm [7.5 in] |
| Product Weight | 324 g [11.4 oz] |
| Product Width | 31.4 mm [1.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.6 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2 A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 24 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB port |
| What's in the Box | |
| Included in Package | 3.5? USB 3.0 SATA III HDD Enclosure |
| HDD Stand | |
| Product Manual | |
| Screw Kit | |
| Universal Power Adapter (NA / UK / EU) | |
| USB 3.0 Cable (1m) | |
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Storage drive size The size of the storage drive, given in inches (''). | 3.5" |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| Hot-swap |
 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 14 TB |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Integrated USB cable |
 |
| Design | |
| Product type The sub-category of the product. | HDD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Silver |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum, Plastic |
| LED indicators | Activity,Power |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, REACH |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASMedia - ASM1153 |
| UASP support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| Power source type What the power source is. | AC |
| External power adapter |
|
| Compatible power plug types | AU,EU,JP,UK,US |
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.6 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 31.4 mm |
| Depth The distance from the front to the back of something. | 191 mm |
| Height The measurement of the product from head to foot or from base to top. | 115 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 321 g |
| Package width The distance from one side of the packaging to the other. | 135 mm |
| Package depth The distance from the front to the back of the packaging. | 220 mm |
| Package height The distance from the top to the bottom of the packaging. | 106 mm |
| Package weight Weight of the packaged product. | 797 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB |
| Stand included |
|
| Screws included |
|
| Manual |
|
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows XP (32/64-bit)/ Server 2003 (32/64-bit)/ Server 2008 R2/ Vista (32/64-bit)/ 7 (32/64-bit)/ 8 (32/64-bit), Mac OS X, Linux |
