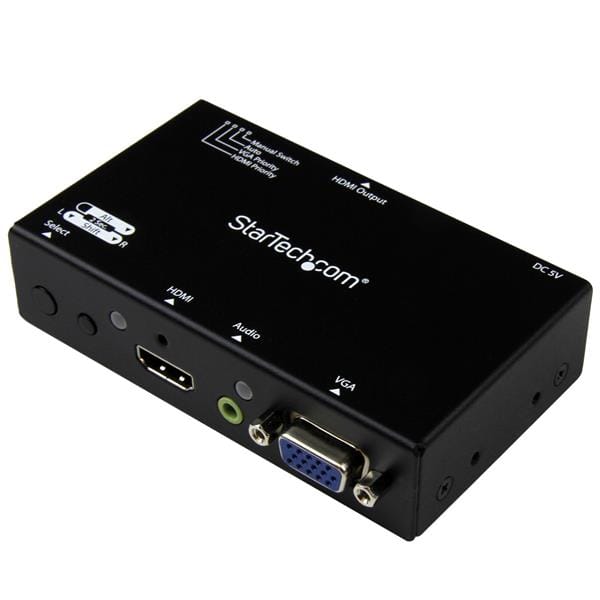

The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.
One Switch for VGA and HDMI
The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.
Effortless Control
The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.
Focus on the Presentation, Not Boardroom Connections
This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room?s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.
If you are looking for a similar device with VGA output, please see our VS221HD2VGA.
The VS221VGA2HD is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
| Connector(s) | |
| Connector A | HDMI (19 pin) Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Connector B | HDMI (19 pin) Female |
| Environmental | |
| Humidity | 0%~80% |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Ports | 2 |
| Indicators | |
| LED Indicators | HDMI Port Selected |
| VGA Port Selected | |
| Packaging Information | |
| Shipping (Package) Weight | 651 g [23 oz] |
| Performance | |
| Audio Specifications | 2-channel 3.5mm stereo audio (VGA) 7.1 surround sound (HDMI) |
| Maximum Analog Resolutions | 1920x1200 |
| Maximum Digital Resolutions | 1920x1200 |
| Supported Resolutions | Supports resolutions up to 1920x1200 / 1080p |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 29 mm [1.1 in] |
| Product Length | 102 mm [4 in] |
| Product Weight | 225 g [7.9 oz] |
| Product Width | 54 mm [2.1 in] |
| Power | |
| Input Current | 0.4 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 1 A |
| Output Voltage | 5 DC |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | instruction manual |
| mounting kit | |
| universal power adapter (NA, EU, UK, ANZ) | |
| VGA+HDMI to HDMI converter switch | |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI/VGA |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1290 x 1200 pixels |
| External power adapter |
|
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 0.4 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 1 A |
| Power requirements | 100 - 240 VAC, 0.4 A / 5 VDC, 2 A |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 225 g |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 54 x 102 x 29 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 236 mm |
| Package depth The distance from the front to the back of the packaging. | 157 mm |
| Package height The distance from the top to the bottom of the packaging. | 64 mm |
| Package weight Weight of the packaged product. | 657 g |
| Packaging content | |
| Manual |
|
| AC adapter included |
|
| Mounting brackets included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Audio support |
|
| SKU | 247982 |
| MPN | VS221VGA2HD |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
