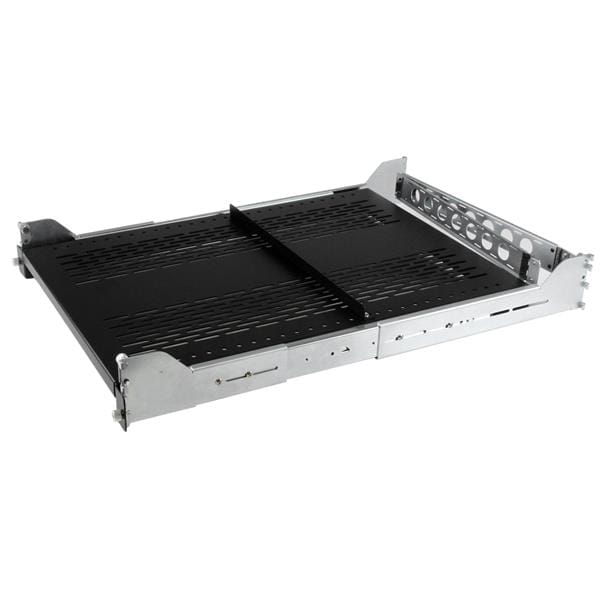

The UNISLDSHF19M Adjustable Sliding Rack Shelf lets you add a vented, sliding shelf with cable management into virtually any 4-post server rack or cabinet. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
The adjustable mounting depth design allows the shelf to be installed easily into server cabinets with mounting depths from 27.7in (702.2mm) to 31.6in (802.2mm). The sliding rails also offer a locking mechanism to stop the shelf from sliding out too far, or sliding back into the rack before maintenance is complete.
Offering a weight capacity of up to 125 lbs (56.7 kg), this sliding rack shelf features a ventilated, cold-rolled steel construction for increased airflow and durability in your server room or wiring closet installations.
For ease in routing cables neatly through your rack, we've included a reversible cable management arm that can be attached to the back of the shelf, plus an adjustable bezel to keep your equipment where you want it on the shelf.
Backed by a StarTech.com 2-year warranty.
| Hardware | |
| Industry Standards | EIA RS310-D |
| Mounting Options | Front Mount (Front and Rear) |
| U Height | 2U |
| Packaging Information | |
| Shipping (Package) Weight | 9.9 kg [21.8 lb] |
| Performance | |
| Weight Capacity | 56.7 kg [125.3 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Thickness | 2 mm [0.1 in] |
| Enclosure Type | Steel |
| External Depth | 609.6 mm [24 in] |
| External Height | 85.2 mm [3.4 in] |
| External Width | 483 mm [19 in] |
| Maximum Mounting Depth | 802.2 mm [31.6 in] |
| Minimum Mounting Depth | 702.2 mm [27.6 in] |
| What's in the Box | |
| Included in Package | Cable Management Assembly |
| Ear Hook and Slide Assembly (Left / Right) | |
| Ear Hook Bracket (Left / Right) | |
| Instruction Manual | |
| Shelf Assembly | |
| Features | |
| Type Characteristics of the device. | Adjustable shelf |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Silver |
| Housing material What the casing of the product is made of. | Steel |
| Maximum weight capacity The maximum weight that the product is designed to hold/store. | 56.7 kg |
| Rack capacity The spase that device fill in rack. | 2U |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | CE |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 483 mm |
| Depth The distance from the front to the back of something. | 609.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 85.2 mm |
| Mounting depth (min) | 70.2 cm |
| Mounting depth (max) | 80.2 cm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 551 mm |
| Package depth The distance from the front to the back of the packaging. | 740 mm |
| Package height The distance from the top to the bottom of the packaging. | 113 mm |
| Package weight Weight of the packaged product. | 10.1 kg |
| Packaging content | |
| Mounting kit |
|
| SKU | 246456 |
| MPN | UNISLDSHF19M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
