RS-232 - 460.8Kbps / Parallel - 1.5Mbps

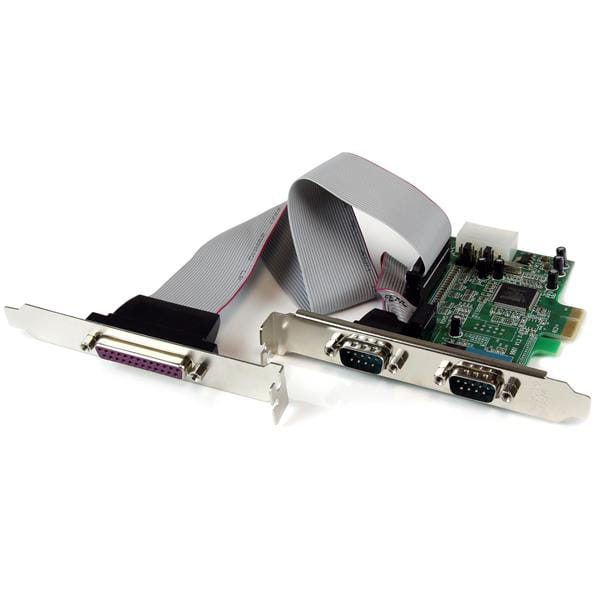

The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | DB-25 (25 pin, D-Sub) Female |
| DB-9 (9 pin, D-Sub) Male | |
| Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | ASIX/MosChip - MCS9901CV-CC |
| Industry Standards | IEEE 1284 |
| PCI Express base specifications revision 1.0a | |
| Interface | Parallel |
| Serial | |
| Port Style | Integrated on Card |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| FIFO | 128 Bytes |
| Max Baud Rate | 460.8 Kbps |
| Maximum Data Transfer Rate | RS-232 - 460.8Kbps Parallel - 1.5Mbps |
| Serial Protocol | RS-232 |
| Supported Protocols | EPP, ECP, SPP, PS/2 |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 105 mm [4.1 in] |
| Product Weight | 140 g [4.9 oz] |
| Product Width | 120 mm [4.7 in] |
| Software | |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, POS Ready 2009, Embedded System 2009, CE 5.0/6.0, XP Embedded, 2000, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.4 to 10.9 Linux 3.5.x to 4.4.x LTS Versions only |
| Special Notes / Requirements | |
| Note | Selectable power output on pin 9 of the serial port |
| What's in the Box | |
| Included in Package | 2 Port PCI-Express Serial Card |
| Driver CD | |
| Instruction Manual | |
| Low Profile Brackets | |
| Parallel port (with ribbon cable) | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| Parallel ports quantity The number of parallel ports. Parallel ports, also known as printer ports, are a type of interface found on computers (personal and otherwise) for connecting peripherals. In computing, a parallel port is a parallel communication physical interface. Parallel ports were common in the 1980s and '90s (mostly conforming to industry standard IEEE 1284) but are now being replaced by USBs and other ports. | 1 |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | MosChip MCS9901CV-CC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 85 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 2000 Professional,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows ME,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 105 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 140 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 174 mm |
| Package height The distance from the top to the bottom of the packaging. | 31 mm |
| Package weight Weight of the packaged product. | 208 g |
| Other features | |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 1.5 Mbit/s |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Mac compatibility Product can be used with Apple Mac software and/or hardware. |
 |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0, Mac OS 10.4.x, Linux |
| Package length | 8.39 |
| SKU | 210987 |
| MPN | PEX2S5531P |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
