16C550 Port = 115.2kbit/sec, EPP/ECP port = 1.5MBPs

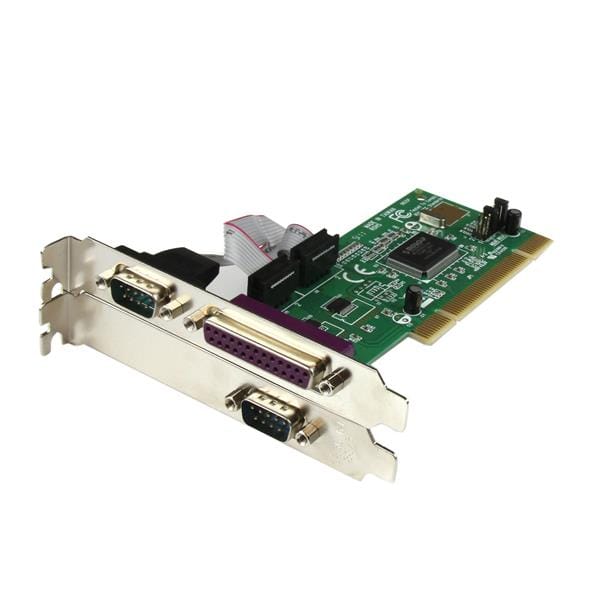

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.
Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.
The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI / PCI-X (Universal 3.3 & 5V, 32-bit) Male |
| External Ports | DB-25 (25 pin, D-Sub) Female |
| DB-9 (9 pin, D-Sub) Male | |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | PCI / PCI-X (5 / 3.3V) |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | ASIX/MosChip - MCS9835CV |
| Interface | Parallel |
| Serial | |
| Port Style | Integrated on Card |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.5 lb] |
| Performance | |
| FIFO | Serial: 32 Bytes Parallel: 16-Bytes |
| Max Baud Rate | 115.2 Kbps |
| Maximum Data Transfer Rate | Up to 1.5 Mbits/sec. |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 120 mm [4.7 in] |
| Product Weight | 70 g [2.5 oz] |
| Product Width | 20 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, CE 5.0 / 6.0, Embedded System 2009, XP Embedded, POS Ready 2009, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2016 Linux 3.5.x to 4.4.x LTS Versions only |
| What's in the Box | |
| Included in Package | DB9 Ribbon Cable |
| Driver CD | |
| Instruction Manual | |
| Low Profile Brackets | |
| PCI 2S1P Card | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI |
| Output interface The socket (port) where the output connectors are connected. | Parallel,Serial |
| Expansion card form factor | Low-profile |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| Serial interface type | RS-232 |
| Parallel ports quantity The number of parallel ports. Parallel ports, also known as printer ports, are a type of interface found on computers (personal and otherwise) for connecting peripherals. In computing, a parallel port is a parallel communication physical interface. Parallel ports were common in the 1980s and '90s (mostly conforming to industry standard IEEE 1284) but are now being replaced by USBs and other ports. | 1 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, UL, TAA, REACH |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASIX - MCS9835CV |
| Baud rate | 115.2 Kbit/s |
| FIFO (First In, First Out) | 32 B |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 95,Windows 98SE,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Other operating systems supported | Windows Embedded POSReady 2009,Windows XP Embedded |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 20 mm |
| Depth The distance from the front to the back of something. | 120 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 66 g |
| Packaging data | |
| Cables included | Serial |
| Mounting brackets included |
|
| Drivers included |
|
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 175 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 200 g |
| Other features | |
| I/O ports An interface on a device to which you can connect another device. | 1 - DB25 F, 2 - DB9 M |
| Supported data transfer rates Rates at which data can be transferred. May vary according to network configurations. | 1.5 Mbits/s |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Linux, & Mac OS 10.4.x & Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0 |
| Package length | 8.27 |
| SKU | 210868 |
| MPN | PCI2S1P |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
