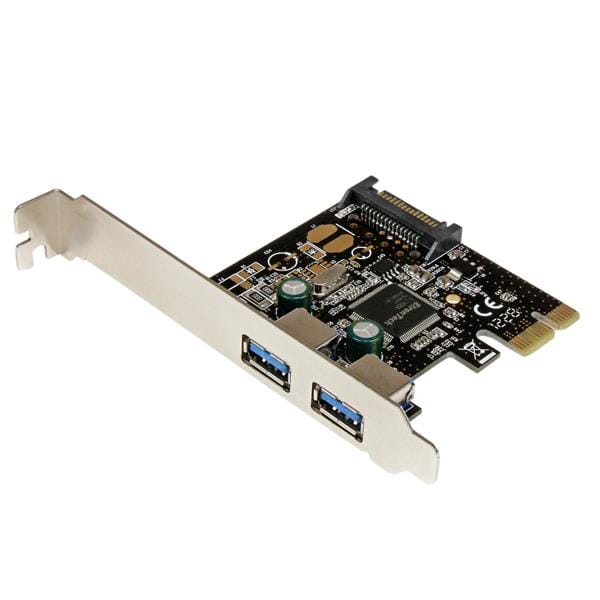

The PEXUSB3S23 2-Port PCI Express USB 3.0 Card lets you add two USB 3.0 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.0 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.0 adapter is compliant with USB 3.0 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | USB Type-A (9 pin) USB 3.0 Female |
| Internal Ports | SATA Power (15 pin) Plug |
| Environmental | |
| Humidity | 10~90% RH, Non-condensing |
| Operating Temperature | 0?C to 60?C (32?F to 140?F) |
| Storage Temperature | 0?C to 80?C (32?F to 176?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Etron - EJ168A |
| Interface | USB 3.0 |
| Port Style | Integrated on Card |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 130 g [4.6 oz] |
| Performance | |
| Maximum Cable Length | 3 m [9.8 ft] |
| Type and Rate | USB 3.0 - 5 Gbit/s |
| UASP Support | No |
| Physical Characteristics | |
| Product Height | 120 mm [4.7 in] |
| Product Length | 80 mm [3.1 in] |
| Product Weight | 60 g [2.1 oz] |
| Product Width | 21 mm [0.8 in] |
| Software | |
| OS Compatibility | Windows? XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 |
| Special Notes / Requirements | |
| System and Cable Requirements | Available 15-pin SATA power connector |
| Available PCI Express slot | |
| What's in the Box | |
| Included in Package | Driver CD |
| Instruction Manual | |
| Low Profile Bracket | |
| PCI Express USB 3.0 card | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | USB 3.2 Gen 1 (3.1 Gen 1) |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Design | |
| Internal The product is built in. |
 |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Features | |
| Data transfer rate (max) | 5 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 0 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008 R2 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 21 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 60 g |
| Packaging data | |
| User guide |
|
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 170 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 130 g |
| Other features | |
| Package length | 5.59 |
| SKU | 244244 |
| MPN | PEXUSB3S23 |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
