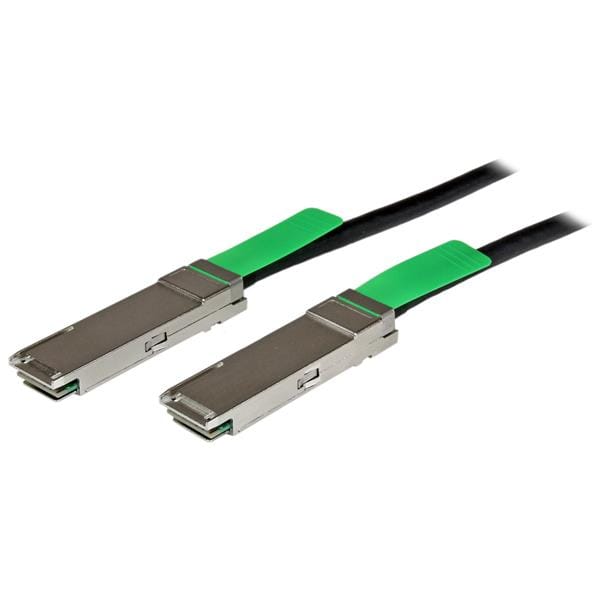

The QSFPMM2M 2m QSFP+ cable is a fully hot pluggable, direct attach cable, supporting 56Gb/s Infiniband as well as 40 Gigabit Ethernet applications connected through (Quad Small Form Factor Pluggable) QSFP+ ports.
Designed for short length, high speed interconnects, this low power, low latency Twinax cable is a cost-effective alternative to fiber optic cable assemblies and is intended for short distance applications such as point-to-point in-rack and across rack network switch/server connections.
Backed by our 2-year warranty, this 4 channel QSFP+ Cable is compliant with MSA (Multi-Source Agreement) standards, making it a reliable replacement MC2207130-002 cable.
| Connector(s) | |
| Connector A | QSFP+ Plug Latching |
| Connector B | QSFP+ Plug Latching |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 190 g [6.7 oz] |
| Performance | |
| Impedance | 100 Ohm |
| Physical Characteristics | |
| Cable Length | 2 m [6.6 ft] |
| Color | Black |
| Product Height | 10 mm [0.4 in] |
| Product Length | 2 m [6.6 ft] |
| Product Weight | 175 g [6.2 oz] |
| Product Width | 18 mm [0.7 in] |
| What's in the Box | |
| Included in Package | 2m QSFP+ 40-Gigabit Ethernet (40GbE) Passive Copper Twinax Cable |
| Features | |
| Cable colour Colour of the cable e.g. white, gray. | Black |
| Cable length How long the cable is. | 2 m |
| Cable shielding The protective layer for the cable, typically made of plastic. | U/FTP (STP) |
| Connector 1 This is the first connector in the device. | QSFP+ |
| Connector 2 This is the second connector in the device. | QSFP+ |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Male |
| Jacket material | Polyvinyl chloride (PVC) |
| Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. | 40000 Mbit/s |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | FCC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 18 mm |
| Depth The distance from the front to the back of something. | 2000 mm |
| Height The measurement of the product from head to foot or from base to top. | 10 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 175 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width The distance from one side of the packaging to the other. | 255 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 11 mm |
| Package weight Weight of the packaged product. | 190 g |
| Other features | |
| Input impedance | 100 Ω |
| SKU | 244412 |
| MPN | QSFPMM2M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | Limited Lifetime Warranty |
| Warranty Contact | https://www.startech.com/ |
