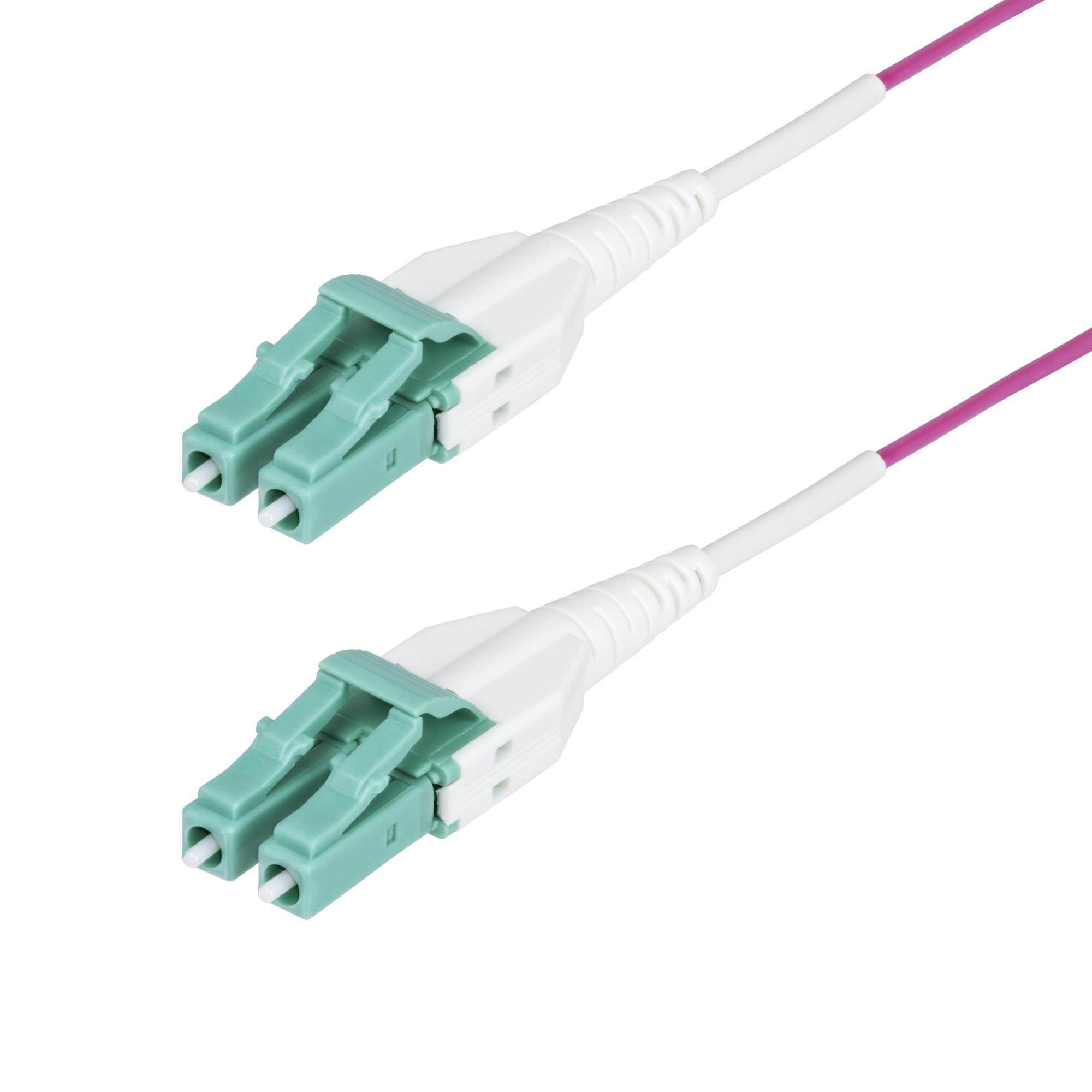

This OM4 LC to LC Multimode Duplex Fiber Optic Patch cable delivers reliable connectivity across 40 and 100 Gigabit networks. The TIA-standard Erika Violet jacket clearly distinguishes OM4 from Aqua OM3/OM4 cabling, eliminating guesswork in critical network setups. The compact uniboot connector design enables easy insertion and removal in high-density installations.
Engineered for Optimal Performance
Built with laser-optimized multimode fiber (LOMMF), the OM4 fiber patch cable is ideal for 850 nm and 1350 nm Vertical Cavity Surface Emitting Laser (VCSEL) and LED sources. Precision-manufactured ceramic ferrules maintain accurate fiber alignment to prevent connectivity issues and minimize insertion loss. Designed for reliability in high-density network applications, the LC to LC UPC polished fiber ends greatly improves return loss characteristics over older PC polishing techniques which may negatively affect performance.
OFNR Riser Rated
Housed in an OFNR (Optical Fiber Nonconductive Riser) flame-retardant jacket, this Riser-rated OM4 fiber cable is engineered to minimize vertical flame propagation between building floors. It enables safer cable installations in riser spaces and vertical shafts within commercial buildings, supporting compliance with fire codes in multi-story structures and other regulated environments.
Wide Compatibility
This multimode 50/125μm fiber optic patch cord is backward compatible with OM3 and 1/10/40 Gbps networks, facilitating reliable data transmission in legacy fiber environments.
StarTech.com fiber cables undergo rigorous testing to confirm operation within strict optical insertion loss limits, guaranteeing compatibility and 100% reliability.
| Features | |
| Cable length How long the cable is. | 2 m |
| Fibre optic type The standardised properties of the fiber optic cable. | OM4 |
| Cable shape | Round |
| Connector 1 This is the first connector in the device. | LC |
| Connector 2 This is the second connector in the device. | LC |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Male |
| Connector polish type | PC |
| Cable type Type of cable e.g. electicity cable, optical cable. | OFNR |
| Product colour The colour e.g. red, blue, green, black, white. | Violet |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
 |
| Core diameter The diameter of the core, which is the material at the centre e.g. the metal in an electrical wire. | 50 µm |
| Cladding diameter The diameter of the cladding, which is the material around the centre (core) e.g. the plastic coating in an electrical wire. | 125 µm |
| Fiber mode structure | Multi-mode |
| Wavelengths supported | 1300,850 nm |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 100 Gbit/s |
| Jacket material | Polyvinyl chloride (PVC) |
| Certificates | |
| Compliance certificates | RoHS, CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -20 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Weight & dimensions | |
| Cable diameter The distance from one side of the cable to the other, with a straight line going through the middle of the cable. | 1.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 30.7 g |
| Bending radius | 7.5 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 230 mm |
| Package depth The distance from the front to the back of the packaging. | 180 mm |
| Package weight Weight of the packaged product. | 30.7 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 420 mm |
| Master (outer) case length | 420 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 300 pc(s) |
| SKU | 823266 |
| MPN | OM4RLCLC2M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
