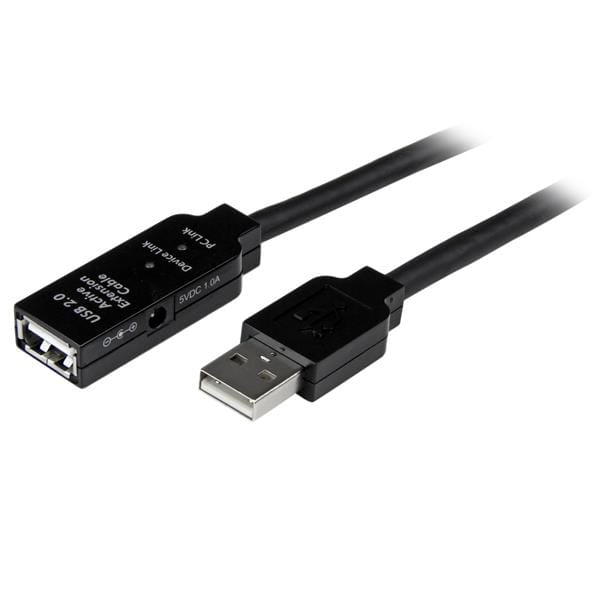

The USB2AAEXT25M 25m Active USB 2.0 Extension Cable offers one USB-A male connector and one USB-A female connector, and provides an active extension of USB 2.0 devices of up to 25-meters (80-feet).
An all-in-one cable for overcoming distance restrictions as well as power source limitations, the active USB 2.0 extension cable incorporates bus-powered active circuitry to ensure performance beyond the length limits of standard USB cables. Plus you can daisy chain 2 cables for a total USB extension of up to 50-meters.
If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter (provided with the cable).
The USB2AAEXT25M repeater cable supports the full USB 2.0 bandwidth of 480 Mbps, and is backed by StarTech.com's 2-year Warranty.
| Connector(s) | |
| Connector A | USB Type-A (4 pin) USB 2.0 Male |
| Connector B | USB Type-A (4 pin) USB 2.0 Female |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Connector Plating | Nickel |
| Packaging Information | |
| Package Quantity | 1 |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Physical Characteristics | |
| Cable Length | 25 m [82 ft] |
| Color | Black |
| Connector Style | Straight |
| Product Height | 10 mm [0.4 in] |
| Product Length | 25 m [82 ft] |
| Product Weight | 972 g [34.3 oz] |
| Product Width | 16.5 mm [0.6 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.35 A |
| Input Voltage | 110V-240V AC |
| Output Current | 1A |
| Output Voltage | 5 DC |
| Plug Type | H |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| Special Notes / Requirements | |
| Note | Cascade two USB2AAEXT25M devices together for further extension |
| What's in the Box | |
| Included in Package | 25m USB 2.0 Active Extension Cable - M/F |
| Plug Adapters for North America, UK, Europe, and Australia | |
| Universal Power Adapter | |
| Features | |
| Cable length How long the cable is. | 25 m |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| Connector 1 This is the first connector in the device. | USB A |
| Connector 2 This is the second connector in the device. | USB A |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male/Female |
| Connector 1 gender The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male. | Male |
| Connector 2 gender The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female. | Female |
| Connector contacts plating What the connector contacts are covered with (layer on top). | Nickel |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.2 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package length | 8.78 |
| Package width The distance from one side of the packaging to the other. | 227 mm |
| Package depth The distance from the front to the back of the packaging. | 214 mm |
| Package height The distance from the top to the bottom of the packaging. | 59 mm |
| Package weight Weight of the packaged product. | 1.26 kg |
| SKU | 246582 |
| MPN | USB2AAEXT25M |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
