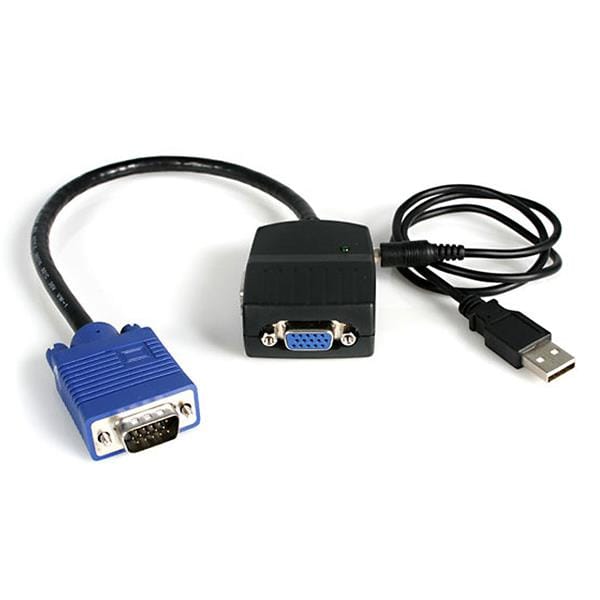

This 2-Port VGA Video Splitter allows a computer to display VGA video on two monitors simultaneously.
Perfect for classrooms, tradeshows, or any environment requiring high quality video on several monitors, the ST122LE VGA splitter supports displays with up to 300 MHz of bandwidth and up to 2048x1536 resolution. Plus, to simplify placement of your VGA displays, the splitter features a built-in booster circuit that allows you to locate VGA monitors up to 200 ft away from your system, and can be powered through a USB connection to the host computer, eliminating the need to find an available power outlet.
Application Diagram
The ST122LE VGA Splitter supports easy plug and play installation, and is backed by StarTech.com's 2-year warranty and FREE lifetime tech support.
| Connector(s) | |
| Connector A | VGA (15 pin, High Density D-Sub) Male |
| Connector B | VGA (15 pin, High Density D-Sub) Female |
| Environmental | |
| Humidity | 0% - 95% |
| Operating Temperature | 0?C to 70?C (32?F to 158?F) |
| Storage Temperature | -20?C to 85?C (-4?F to 185?F) |
| Hardware | |
| Industry Standards | DDC, DDC2, DDC2B, on Video Out Port 1 |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| Bandwidth | 300MHz |
| Maximum Analog Resolutions | 2048x1536 |
| Maximum Cable Length | 61 m [199.9 ft] |
| MTBF | 40,000 Hours |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 0.5A |
| Output Voltage | 5 DC |
| Plug Type | M |
| Power Source | USB-Powered |
| What's in the Box | |
| Included in Package | USB to DC power adapter |
| User Manual | |
| Video Splitter | |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| Video out | 2x VGA |
| Video ports quantity The number of ports (sockets) for video input or output. | 2 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Plastic |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1536 pixels |
| Maximum operating distance The maximum distance from which you can operate the device. | 61 m |
| Bandwidth Bandwidth is the difference between the upper and lower frequencies in a continuous set of frequencies. It is typically measured in Hertz (Hz). A key characteristic of bandwidth is that any band of a given width can carry the same amount of information, regardless of where that band is located in the frequency spectrum. For example, a 3 kHz band can carry a telephone conversation whether that band is at baseband (as in a POTS telephone line) or modulated to some higher frequency. | 300 MHz |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
 |
| Certification | REACH, CE, FCC, TAA |
| Power | |
| Output voltage | 5 V |
| Output current | 0.5 A |
| USB powered The device can be powered via a USB connection. |
|
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 100 g |
| Packaging data | |
| Package length | 5.12 |
| Package width The distance from one side of the packaging to the other. | 145 mm |
| Package depth The distance from the front to the back of the packaging. | 210 mm |
| Package height The distance from the top to the bottom of the packaging. | 40 mm |
| Package weight Weight of the packaged product. | 235 g |
| Packaging content | |
| Manual |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Technical details | |
| Connector 1 This is the first connector in the device. | DB15 |
| Connector 2 This is the second connector in the device. | DB15 |
| Technical features | DDC, DDC2, DDC2B |
| SKU | 245672 |
| MPN | ST122LE |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
