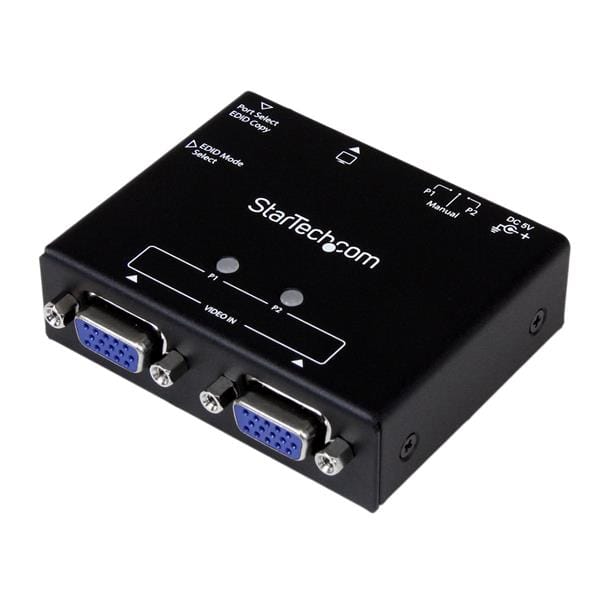

The ST122VGA 2-Port VGA Auto Switcher lets you share a display between two computers and automatically switch to the active source device using configurable priority switching. When the port you have selected as the primary input is turned off, the device automatically switches to the secondary input.
For maximum control and versatility, the ST122VGA also offers manual switch control with an easy-to-use button that allows you to toggle between video sources.
For a convenient setup the switcher can be powered using the included power adapter or the USB power cable, and features built-in EDID emulation ensuring maximum compatibility with your display or projector and support for resolutions up to 1920x1200/1080p.
The ST122VGA includes mounting hardware for a tidy and professional installation, and is backed by a 2-year StarTech.com warranty, and free lifetime technical support.
| Connector(s) | |
| Connector A | VGA (15 pin, High Density D-Sub) Female |
| Connector B | VGA (15 pin, High Density D-Sub) Female |
| Environmental | |
| Humidity | 0% - 80 % |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -10?C to 60?C (14?F to 140?F) |
| Hardware | |
| Audio | No |
| Industry Standards | EDID |
| Ports | 2 |
| Indicators | |
| LED Indicators | P1 (Port 1 selected) |
| P2 (Port 2 selected) | |
| Packaging Information | |
| Shipping (Package) Weight | 543 g [19.2 oz] |
| Performance | |
| Maximum Analog Resolutions | WUXGA (1920 x 1200) QWXGA (2048 x 1152) |
| Supported Resolutions | 1024 x 768, 1280 x 720, 1280 x 1024, 1366 x 768, 1440 x 900, 1600 x 900, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1920 x 1200, 1920 x 1440, 2048 x 1152 |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 21 mm [0.8 in] |
| Product Length | 74 mm [2.9 in] |
| Product Weight | 175 g [6.2 oz] |
| Product Width | 59 mm [2.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.4A |
| Input Voltage | 110V-240V AC |
| Output Current | 2A |
| Output Voltage | 5 DC |
| Power Consumption (In Watts) | 10 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | 2-port VGA switch |
| instruction manual | |
| universal power adapter (NA, EU, UK, ANZ) | |
| USB power cable | |
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 2 |
| Video in | VGA |
| Video out | 2x VGA |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Extended display identification data (EDID) |
|
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1366 x 768,1600 x 900,1920 x 1440,2048 x 1152,1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1440 x 900 (WXGA+),1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Supported video modes The video modes that can be displayed by the device. | 1080p |
| LED indicators |
|
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 2048 x 1152 pixels |
| External power adapter |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC adapter input current | 0.4 A |
| AC adapter output voltage | 5 V |
| AC adapter output current | 2 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 10 W |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC, TAA, REACH |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 59 mm |
| Depth The distance from the front to the back of something. | 74 mm |
| Height The measurement of the product from head to foot or from base to top. | 21 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 170 g |
| Length The measurement or extent of something from end to end. | 7.4 cm |
| Packaging data | |
| Package length | 6.61 |
| Package width The distance from one side of the packaging to the other. | 170 mm |
| Package depth The distance from the front to the back of the packaging. | 145 mm |
| Package height The distance from the top to the bottom of the packaging. | 66 mm |
| Package weight Weight of the packaged product. | 469 g |
| Packaging content | |
| Number of products included The number of products that are included in the package. | 1 pc(s) |
| Manual |
|
| Cables included | USB |
| Plug adapter type | NA, EU, UK, ANZ |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| SKU | 245693 |
| MPN | ST122VGA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
