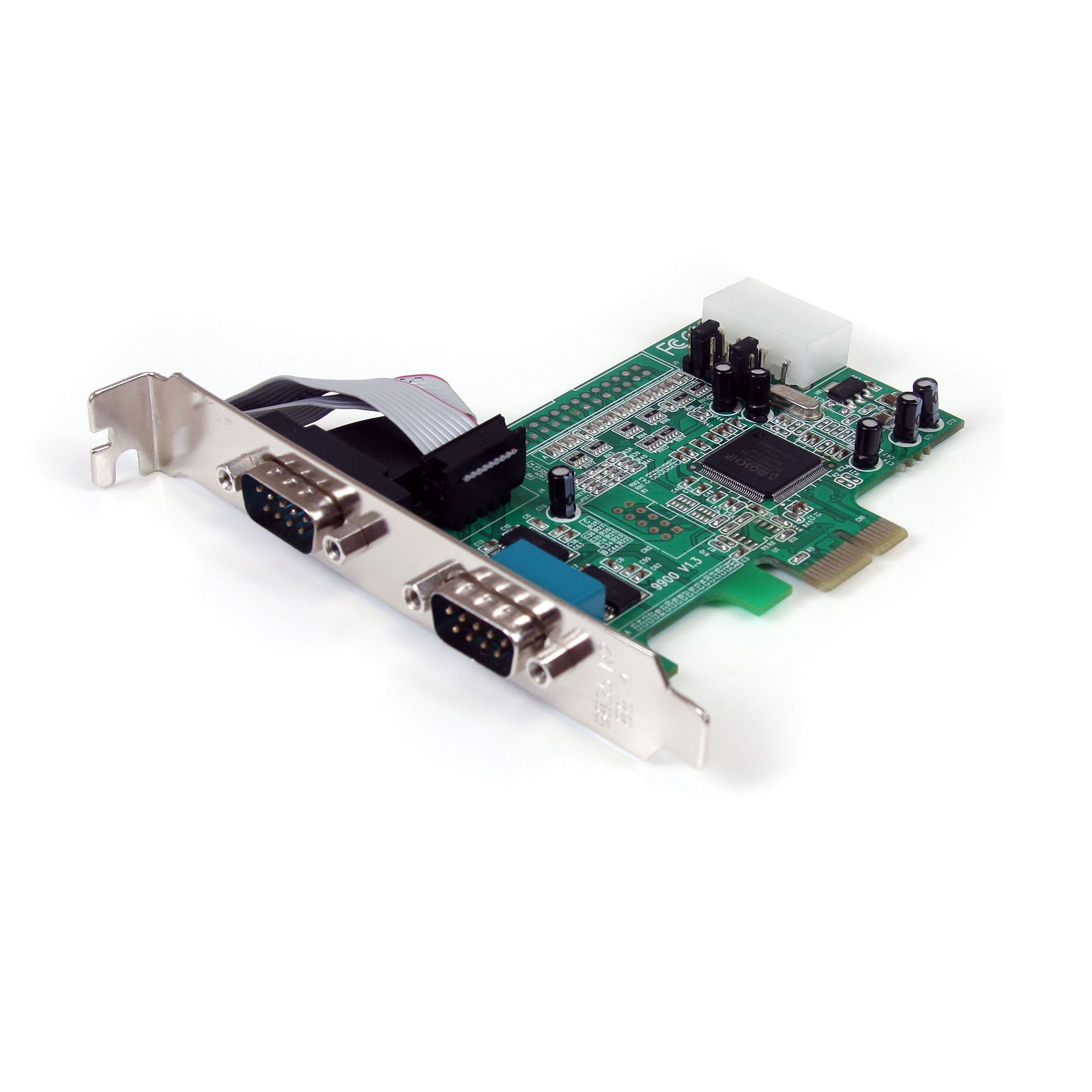

The PEX2S553 PCI Express serial card lets you turn a PCI Express slot into 2 RS232 (DB9) serial ports. Based on a native single chip design (no bridge chip), this 2-port serial adapter card allows you to harness the full capability offered by PCI Express (PCIe), and reducing the load applied to the CPU by as much as 48% over conventional serial cards.
The RS232 Serial Adapter Card (PEX2S553) is compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64 bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4 and above.
Plus, the serial card includes an optional half-height/low profile bracket that allows the card to be installed in any PCI Express slot, regardless of the size of the computer case.
This product is a replacement for our PEX2S552 card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Connector(s) | |
Connector Type(s) | PCI Express x1 Male |
External Ports | DB-9 (9 pin, D-Sub) Male |
Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
Environmental | |
Humidity | 5~85% RH |
Operating Temperature | -10?C to 80?C (14?F to 176?F) |
Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
Hardware | |
Bus Type | PCI Express |
Card Type | Standard Profile (LP bracket incl.) |
Chipset ID | ASIX/MosChip - MCS9922CV-AA |
Interface | Serial |
Port Style | Integrated on Card |
Ports | 2 |
Packaging Information | |
Shipping (Package) Weight | 0.2 kg [0.4 lb] |
Performance | |
FIFO | 128 Bytes |
Max Baud Rate | 460.8 Kbps |
Serial Protocol | RS-232 |
Physical Characteristics | |
Color | Green |
Product Height | 20 mm [0.8 in] |
Product Length | 105 mm [4.1 in] |
Product Weight | 63.5 g [2.2 oz] |
Product Width | 120 mm [4.7 in] |
Software | |
OS Compatibility | Windows? DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.4 to 10.10 Linux kernel 2.6.x to 4.4.x LTS Versions only |
Special Notes / Requirements | |
Note | Selectable power output on pin 9 of the serial port |
What's in the Box | |
Included in Package | 2 Port PCI-Express Serial Card |
Driver CD | |
Instruction Manual | |
Low Profile Brackets |
Ports & interfaces | |
Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
Output interface The socket (port) where the output connectors are connected. | Serial |
Expansion card standard | PCIe 1.0 |
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
Serial interface type | RS-232 |
Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 1 |
Design | |
Internal The product is built in. | |
Product colour The colour e.g. red, blue, green, black, white. | Green |
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. | |
Certification | CE, FCC, REACH |
Features | |
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASIX - MCS9922CV-AA |
Baud rate | 460.8 Kbit/s |
FIFO (First In, First Out) | 128 B |
Operational conditions | |
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 80 °C |
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 100 °C |
Operating relative humidity (H-H) | 5 - 85% |
System requirements | |
Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) | |
Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016 |
Other operating systems supported | DOS,Windows Embedded POSReady 2009,Windows Embedded Standard 2009,Windows XP Embedded |
Weight & dimensions | |
Width The measurement or extent of something from side to side. | 120 mm |
Depth The distance from the front to the back of something. | 105 mm |
Height The measurement of the product from head to foot or from base to top. | 20 mm |
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 61 g |
Packaging data | |
Drivers included | |
Manual | |
Package width The distance from one side of the packaging to the other. | 145 mm |
Package depth The distance from the front to the back of the packaging. | 175 mm |
Package height The distance from the top to the bottom of the packaging. | 32 mm |
Package weight Weight of the packaged product. | 151 g |
Other features | |
Compatible operating systems List of desktop operating systems tested as compatible with this product. | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0, Linux, Mac OS 10.4.x |
Package length | 8.39 |
SKU | 210798 |
MPN | PEX2S553 |
