data transfer rate up to 460.8 Kbps

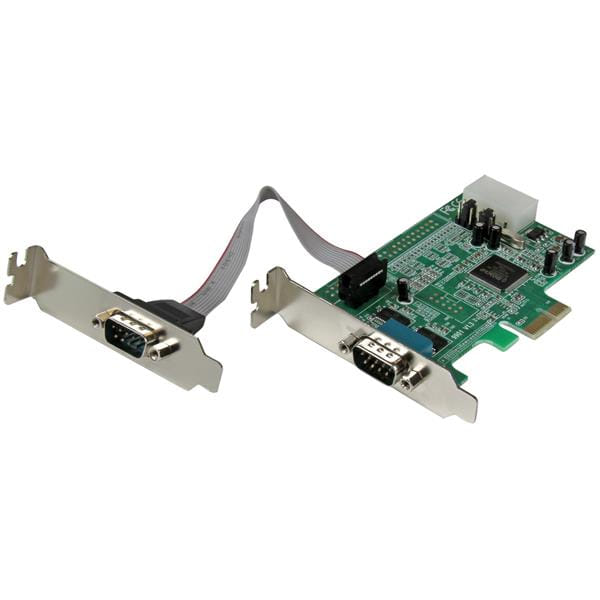

The PEX2S553LP low profile/half-height PCI Express Serial Card turns a PCI Express slot into two RS232 (DB9) serial connections.
The card is constructed using a native single chip design that lets you harness the full capability offered by PCI Express (PCIe), while reducing the load applied to the CPU by as much as 48% over conventional bridge chip serial cards.
The PCI Express RS232 Serial Adapter Card is compatible with a broad range of operating systems, including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and ships with a low profile/half-height bracket installed but includes an optional full profile bracket that lets you add 2 serial ports to virtually any computer (regardless of the case form factor).
This product is a replacement for our PEX2S552LP card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| Internal Ports | LP4 (4 pin, Molex Large Drive Power) Male |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10?C to 80?C (14?F to 176?F) |
| Storage Temperature | -20?C to 100?C (-4?F to 212?F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | ASIX/MosChip - MCS9922CV-AA |
| Interface | Serial |
| Port Style | Integrated on Card |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 0.2 kg [0.4 lb] |
| Performance | |
| FIFO | 128 Bytes |
| Max Baud Rate | 460.8 Kbps |
| Serial Protocol | RS-232 |
| Physical Characteristics | |
| Product Height | 20 mm [0.8 in] |
| Product Length | 105 mm [4.1 in] |
| Product Weight | 63.5 g [2.2 oz] |
| Product Width | 80 mm [3.1 in] |
| Software | |
| Microsoft WHQL Certified | Yes |
| OS Compatibility | Windows? DOS, 95, 98SE, 2000, CE 5.0/6.0, Embedded System 2009, POS Ready 2009, XP Embedded, XP, Vista, 7, 8, 8.1, 10 Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X? 10.4 to 10.10 Linux kernel 2.6.x to 4.4.x LTS Versions only |
| What's in the Box | |
| Included in Package | DB9 Ribbon cable |
| Driver CD | |
| Full Profile Bracket | |
| Instruction Manual | |
| Low profile bracket | |
| PCI-Express Serial Card | |
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | Serial |
| Expansion card standard | PCIe 1.1 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 2 |
| Serial interface type | RS-232 |
| Peripheral (Molex) power connectors (4-pin) White 4-pinned connector used to connect a peripheral to the power supply. | 1 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | TAA, CE, FCC, REACH |
| Features | |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASIX - MCS9922CV-AA |
| Baud rate | 460.8 Kbit/s |
| FIFO (First In, First Out) | 128 B |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 80 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 100 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95,Windows 98SE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. | Mac OS X 10.10 Yosemite,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Other operating systems supported | DOS,Windows XP Embedded |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 80 mm |
| Depth The distance from the front to the back of something. | 105 mm |
| Height The measurement of the product from head to foot or from base to top. | 20 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 63.5 g |
| Packaging data | |
| Cables included | Serial |
| Mounting brackets included |
|
| Drivers included |
|
| Manual |
|
| Package width The distance from one side of the packaging to the other. | 143 mm |
| Package depth The distance from the front to the back of the packaging. | 173 mm |
| Package height The distance from the top to the bottom of the packaging. | 32 mm |
| Package weight Weight of the packaged product. | 200 g |
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | DOS, Windows 95/ 98SE/ 2000/ XP(32/64bit)/ Server 2003(32/64bit)/ Vista(32/64bit)/ 7(32/64bit)/ Server 2008 R2, Windows XP Embedded/ POS Ready 2009/ Embedded System 2009 OS/ CE 5.0/ CE 6.0, Linux, Mac OS 10.4.x |
| Package length | 8.39 |
| SKU | 210791 |
| MPN | PEX2S553LP |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
