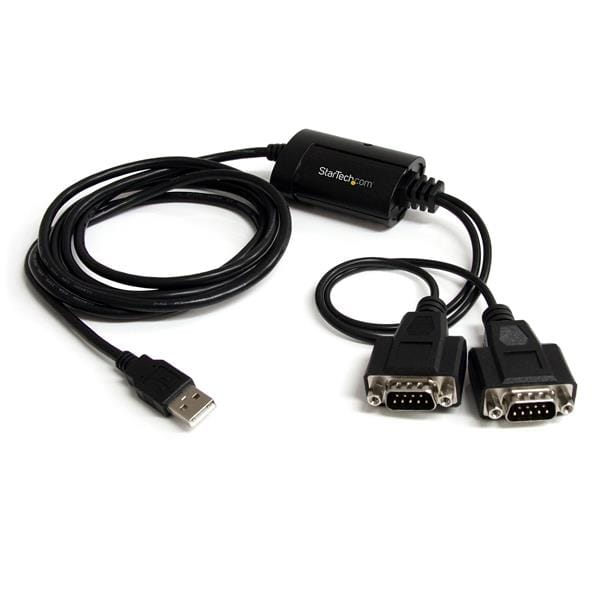

Startech 2-Port FTDI USB to Serial Adapter Cable with COM Retention

Item No:
210392
MPN:
ICUSB2322F
$117.82

Startech 2-Port FTDI USB to Serial Adapter Cable with COM Retention

$117.82
Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 3-5 business days
Store Availability
  • 4-6 business days at Bankstown Store
  • 4-6 business days at Castle Hill Store
  • 3-5 business days at Northmead Store
Shipping Estimate
Wall mountable design, Baud Rate: 921.6 Kbps

The ICUSB2322F 2-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into 2 RS232 serial DB9 ports to connect, monitor and control your serial devices.

This compact adapter features COM retention, allowing the same COM port values to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. Unlike most USB-serial adapters, this one uses the FTDI chipset, which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions.

This USB-serial adapter is compatible with a broad list of Operating Systems, including Windows®, Windows CE, Mac OS and Linux, making this product the perfect solution for integrating into mixed environments.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)DB-9 (9 pin, D-Sub) Male
USB Type-A (4 pin) USB 2.0 Male
Environmental
Humidity5~95% RH
Operating Temperature0?C to 55?C (32?F to 131?F)
Storage Temperature-20?C to 85?C (-4?F to 185?F)
Hardware
Bus TypeUSB 2.0
Chipset IDFTDI - FT2232D
InterfaceSerial
Port StyleCable Adapters
Ports2
Packaging Information
Shipping (Package) Weight0.2 kg [0.5 lb]
Performance
Data Bits7, 8
FIFO128 Bytes
Max Baud Rate921.6 Kbps
ParityNone, Odd, Even, Mark, Space
Serial ProtocolRS-232
Stop Bits1, 2
Physical Characteristics
Cable Length1.8 m [6 ft]
ColorBlack
Enclosure TypePlastic
Product Height20 mm [0.8 in]
Product Length2133 mm [84 in]
Product Weight159 g [5.6 oz]
Product Width45 mm [1.8 in]
Power
Power SourceUSB-Powered
Software
OS CompatibilityWindows? CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server? 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS? 10.6 to 10.12
Linux 2.4.x to 4.4.x LTS Versions only
Special Notes / Requirements
System and Cable RequirementsOne available USB 1.1 (or better) port
What's in the Box
Included in Package2 Port USB to RS-232 Serial Adapter
Driver CD
Instruction Manual
Wall Mounting Kit
Features
Product colour The colour e.g. red, blue, green, black, white. Black
Cable length How long the cable is. 2.1 m
Connector 1 This is the first connector in the device. USB 2.0 A
Connector 2 This is the second connector in the device. DB9
Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. Male/Male
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 156 g
Certification CE, FCC, TAA, REACH
Packaging data
Package length 6.89
Quantity per pack 1 pc(s)
Package width The distance from one side of the packaging to the other. 146 mm
Package depth The distance from the front to the back of the packaging. 212 mm
Package height The distance from the top to the bottom of the packaging. 39 mm
Package weight Weight of the packaged product. 280 g
Certification
RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance.
More Information
SKU 210392
MPN ICUSB2322F
Brand Startech
Product Condition Brand New/Unused
Adapter Type USB Adapter
Stock Availability Available for Shipping
Warranty Period 2 Years Warranty
Warranty Contact https://www.startech.com/
