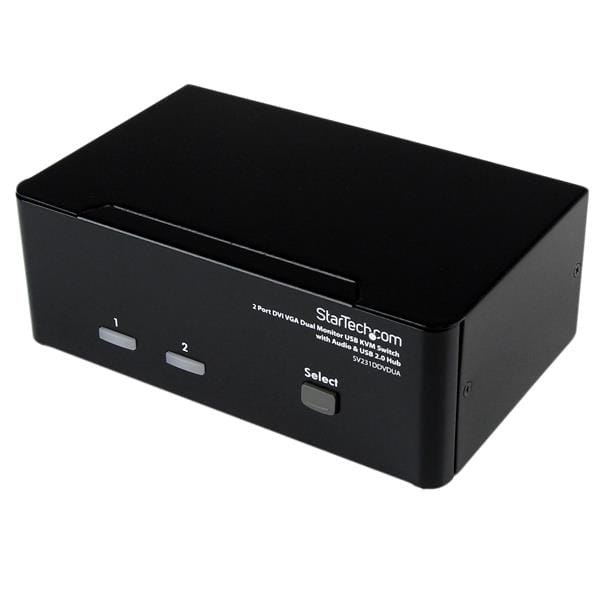

The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting users control two Dual Display computers using a single USB mouse and keyboard peripheral set.
With support for high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per computer connection, as well as audio switching capability between connected computers.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged metal chassis that helps ensure durable performance.
Note: If you're connecting a digital display to the DVI console port, it is recommended you use a DVI-D digital cable. However, if you're connecting an analog display (adapter required), it is recommended you use a DVI-I or a DVI-A cable.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
| Connector(s) | |
| Console Interface(s) | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB Type-A (4 pin) USB 2.0 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Host Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| DVI-I (29 pin) Female | |
| USB B (4 pin) Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Environmental | |
| Humidity | 80% RH |
| Operating Temperature | 0?C to 40?C (32?F to 104?F) |
| Storage Temperature | -20?C to 60?C (-4?F to 140?F) |
| Hardware | |
| Audio | Yes |
| Cables Included | No |
| Daisy-Chain | No |
| KVM Ports | 2 |
| Number of Monitors Supported | 2 |
| PC Interface | USB |
| PC Video Type | DVI+VGA |
| Rack-Mountable | No |
| Indicators | |
| LED Indicators | Green - PC Detected |
| Green - Power | |
| Red - PC Indicator | |
| Packaging Information | |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Performance | |
| DVI Support | Yes - Single Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Digital Resolutions | 1920 x 1200 |
| Maximum Number of Users | 1 |
| MTBF | 64,691 Hours |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Depth | 100 mm [3.9 in] |
| Product Height | 57 mm [2.2 in] |
| Product Length | 163 mm [6.4 in] |
| Product Weight | 750 g [26.5 oz] |
| Product Width | 160 mm [6.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | This KVM switch supports DVI-D (digital) signaling only and it is recommended wherever possible to use DVI-D cabling across all PC to KVM and KVM to Console connections to ensure proper function. Please contact technical support if you require assistance identifying the proper cables. |
| What's in the Box | |
| Included in Package | 2-port KVM switch |
| foot pads | |
| instruction manual | |
| universal power adapter (NA/EU/UK/AU) | |
| Ports & interfaces | |
| Number of computers controlled The amount of computers controlled by this device. | 2 |
| Keyboard port type The type of socket in the device for connecting a keyboard e.g. USB. | USB |
| Mouse port type | USB |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | VGA/DVI-I |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
 |
| Console ports | 3.5mm headphone,DVI-I,VGA (D-Sub) |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| Audio connections Cables used to connect audio inputs or audio outputs to another device e.g, audio amplifier. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 3 |
| Number of microphone inputs | 3 |
| Performance | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WUXGA |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 1920 x 1200 pixels |
| Maximum digital resolution | 1920 x 1200 pixels |
| DDC2B support |
|
| Daisy chain |
 |
| Number of users The number of people that use or can use this product. | 1 user(s) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Steel |
| LED indicators | Power |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 64691 h |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18 W |
| External power adapter |
|
| Power plug type | Type M |
| Compatible power plug types | AU,EU,UK,US |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 163 mm |
| Height The measurement of the product from head to foot or from base to top. | 57 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Packaging data | |
| Package length | 9.53 |
| Package width The distance from one side of the packaging to the other. | 295 mm |
| Package depth The distance from the front to the back of the packaging. | 199 mm |
| Package height The distance from the top to the bottom of the packaging. | 72 mm |
| Package weight Weight of the packaged product. | 1.29 kg |
| Packaging content | |
| Manual |
|
| AC adapter included |
|
| Rubber feet |
|
| Other features | |
| Audio support |
|
| IP control |
|
