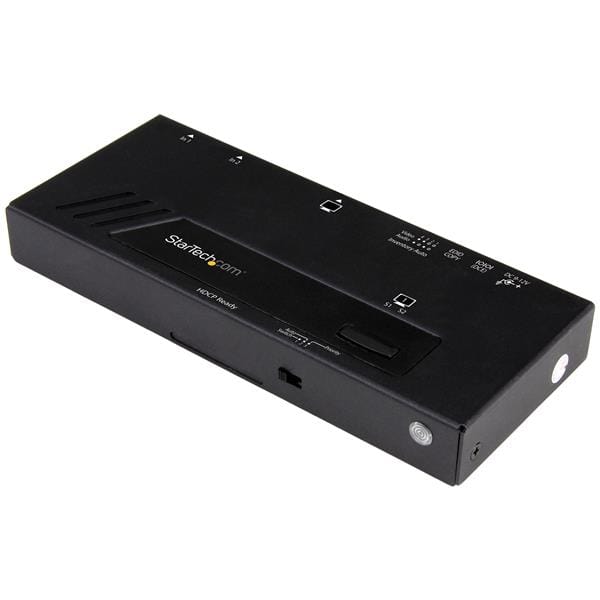

Create a powerful visual experience, with the ability to switch between two 4K video sources seamlessly. This 2-port HDMI® switch lets you share a monitor, projector or TV with two different HDMI enabled video sources, and switch between them with minimal disruption.
Impressive image quality with 4K support
The video switch maintains Ultra HD 4K picture quality while switching between content from HDMI source devices - including Blu-ray™ players or DVD players, computer systems, video game consoles, digital cable and satellite boxes and A/V receivers.
4K support ensures a higher level of image clarity and visibility, delivering four times the resolution of 1080p - 8.29 million pixels versus 2.07 million pixels. It provides a more engaging visual experience for audiences in a wide range of venues including conference centers and boardrooms, home theaters, and commercial settings. With its exceptional resolution and image quality, it's also ideal for bringing your digital signage to life.
Fast and easy operation
Enjoy hassle-free operation with three switching modes:
-
Fast auto-switching: ensures minimal time for switching between HDMI sources. The switch provides effortless operation with advanced auto-sensing - it detects the latest connected HDMI source and automatically switches to it. Auto-switching encourages collaboration among colleagues, by making it easy to share your projector. It also ensures no downtime in a digital signage application if a source signal is accidentally powered off or fails.
-
Priority switching: identifies one port to take first priority for HDMI sources when multiple sources are connected, ideal for applications such as digital signage.
-
Manual switching: enables you to manually select your HDMI source with front-panel buttons that are easy to use.
An IR remote control is included in the box, enabling you to select your desired input source remotely. The RS-232 serial control interface ensures easy remote operation with serial control enabled devices.
Hassle-free setup with plug-and-play installation
The switch also saves time during setup with EDID emulation, which ensures that all of your display settings, such as native resolution and refresh rate, are communicated between your display and video source devices. EDID emulation maximizes compatibility with your 4K display to ensure a convenient plug-and-play installation and the sharpest image quality.
The VS221HD4KA is backed by a 2-year StarTech.com warranty and free lifetime technical support.
| Connector(s) | |
| Connector A | HDMI (19 pin) Female |
| Connector B | HDMI (19 pin) Female |
| RJ-11 Female | |
| Environmental | |
| Humidity | 0% ~ 80% |
| Operating Temperature | 0?C to 50?C (32?F to 122?F) |
| Storage Temperature | -20?C to 70?C (-4?F to 158?F) |
| Hardware | |
| Audio | Yes |
| Chipset ID | Microchip PIC24 |
| Industry Standards | HDMI 1.4 |
| Output Signal | HDMI |
| Ports | 2 |
| Indicators | |
| LED Indicators | Active port LED |
| Power LED | |
| Packaging Information | |
| Shipping (Package) Weight | 841 g [29.7 oz] |
| Performance | |
| Audio Specifications | 7.1 Surround sound |
| Maximum Digital Resolutions | 4K @ 30 Hz |
| Supported Resolutions | 3840x2160 (4K) 2560x1600 1920x1200 1920x1080 (1080p) 1280x720 (720p) |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Product Height | 14 mm [0.6 in] |
| Product Length | 100 mm [3.9 in] |
| Product Weight | 179 g [6.3 oz] |
| Product Width | 61.5 mm [2.4 in] |
| Power | |
| Input Voltage | 110V-240V AC |
| Output Current | 1.5 |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 18 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | 2-port HDMI switch |
| mounting kit | |
| quick start guide | |
| remote control | |
| RJ11 cable | |
| RJ11 to DB-9 serial adapter | |
| universal power adapter (NA/EU/UK/AU) | |
| Ports & interfaces | |
| HDMI version | 1.4 |
| HDMI in Port (socket) for HDMI input. | 2 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
 |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| LED indicators | Activity,Power |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 3840 x 2160 pixels |
| Remote control type | IR |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 7.1 channels |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| AC adapter input current | 1.5 A |
| AC adapter output voltage | 12 V |
| Certificates | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE, FCC |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 235 mm |
| Package depth The distance from the front to the back of the packaging. | 156 mm |
| Package height The distance from the top to the bottom of the packaging. | 63 mm |
| Package weight Weight of the packaged product. | 835 g |
| Packaging content | |
| Handheld remote control Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | Phone (RJ-11) |
| AC adapter included |
|
| Mounting brackets included |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Technical details | |
| Audio support |
|
| SKU | 247968 |
| MPN | VS221HD4KA |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
