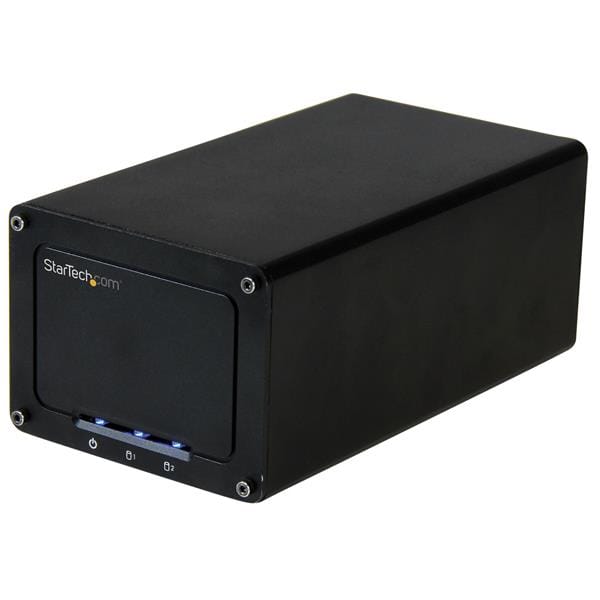

Compact in size but big on performance, this dual-bay enclosure provides powerful external data storage, with ultra-fast data transfer speeds and configurable RAID modes. It?s ideal for small business and home office applications, or top-performing workstations for graphic designers, engineers and other business professionals.
High-capacity storage in a compact design
Create a high-capacity, external data storage solution with support for two 2.5? SSDs/HDDs in a wide range of sizes from 5 to 12.5mm. Tested for compatibility with capacities up to 4TB at 7200 RPM, this aluminum enclosure delivers fast file transfer rates with USB 3.1 Gen 2 performance. It supports SATA I, II and III and is enhanced with UASP to maximize the performance and speed of your SATA III drives. It even has a fan, with built-in speed control, to keep things running smoothly.
Harness the speed of USB 3.1 Gen 2
USB 3.1 Gen 2 gives you greater bandwidth and speed, supporting transfer rates of up to 10Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives while alleviating bottlenecks in your data transfers.
Includes two USB cables for versatility
The dual-bay drive enclosure comes with two USB cables for flexible use with the latest laptops and tablets equipped with a USB-C™ port, as well as legacy devices. It includes both USB-C to Micro B and USB-A to Micro B cables. The 2-bay enclosure is also compatible with a Thunderbolt™ 3 USB-C port.
Achieve enhanced performance through RAID
Through RAID 0 support, the dual-bay enclosure lets you maximize the performance of your SATA III SSDs to achieve greater file transfer speeds. The dual-bay enclosure also supports RAID 1, Big (Spanning or Concatenation) and JBOD. With multiple RAID options, you can gain increased storage size, performance, or redundancy.
The enclosure is OS independent, requiring no additional software or drivers. The S252BU313R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| Host Connectors | USB 3.1 USB Type Micro-B (10 pin, Gen 2, 10 Gbps) |
| Environmental | |
| Humidity | 20~80% RH |
| Operating Temperature | 5?C to 35?C (41?F to 95?F) |
| Storage Temperature | -20?C to 50?C (-4?F to 122?F) |
| Hardware | |
| Bus Type | USB 3.1 Gen 2 |
| Chipset ID | ASMedia - ASM1352R |
| Compatible Drive Types | SATA |
| Drive Installation | Fixed |
| Drive Size | 2.5in |
| Fan Bearing Type | Sleeve Bearing |
| Fan(s) | Yes |
| Fans | 30 mm |
| Interface | USB 3.1 Gen 2 |
| Number of Drives | 2 |
| Indicators | |
| LED Indicators | Power |
| Read and Write - HDD1 | |
| Read and Write - HDD2 | |
| Packaging Information | |
| Shipping (Package) Weight | 910 g [32.1 oz] |
| Performance | |
| Max Drive Capacity | Tested with drives up to 4TB @ 7200 RPM |
| Maximum Data Transfer Rate | 10 Gbps |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s |
| UASP Support | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 60 mm [2.4 in] |
| Product Length | 148 mm [5.8 in] |
| Product Weight | 378 g [13.3 oz] |
| Product Width | 81 mm [3.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.8 |
| Input Voltage | 110V-240V AC |
| Output Current | 2A |
| Output Voltage | 12 DC |
| Plug Type | B |
| Power Consumption (In Watts) | 60 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | allen keys |
| drive trays | |
| instruction manual | |
| rubber feet | |
| universal power adapter (NA,EU,UK,ANZ) | |
| USB 3.1 to SATA enclosure | |
| USB A to Micro B cable | |
| USB C to Micro B cable | |
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 2 |
| Storage drive size The size of the storage drive, given in inches (''). | 2.5" |
| Supported storage drive interfaces | Serial ATA,Serial ATA II,Serial ATA III |
| Supported storage drive heights | 5,7,9.5,12.5 mm |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,BIG,JBOD |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 4 TB |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 2 (3.1 Gen 2) |
| USB connector type The type of USB connector/port that this product has. | Micro-USB B |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Integrated USB cable |
 |
| Design | |
| Product type The sub-category of the product. | HDD/SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum |
| LED indicators |
|
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 3 cm |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | FCC, CE, REACH |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASMedia - ASM1352R |
| UASP support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| External power adapter |
|
| Compatible power plug types | AU,EU,UK,US |
| AC adapter input voltage | 110 - 240 V |
| AC adapter input current | 0.8 A |
| AC adapter output voltage | 12 V |
| AC adapter output current | 2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 81 mm |
| Depth The distance from the front to the back of something. | 148 mm |
| Height The measurement of the product from head to foot or from base to top. | 60 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 378 g |
| Package width The distance from one side of the packaging to the other. | 163 mm |
| Package depth The distance from the front to the back of the packaging. | 228 mm |
| Package height The distance from the top to the bottom of the packaging. | 112 mm |
| Package weight Weight of the packaged product. | 910 g |
| Packaging content | |
| AC adapter included |
|
| Cables included | USB,USB Type-C |
| Screwdriver included |
|
| Manual |
|
| Other features | |
| Power plug type | Type B |
| SKU | 244741 |
| MPN | S252BU313R |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
