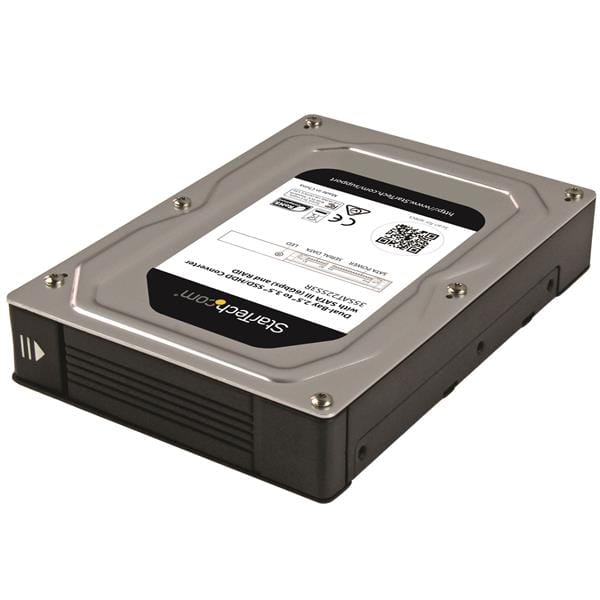

This unique dual-bay adapter enclosure gives you an easy and cost-effective way to upgrade legacy systems such as desktop PCs and servers, by letting you install two 2.5" solid-state drives or hard drives into a single 3.5" drive bay.
Upgrade your system performance
The adapter enclosure lets you install newer, higher performing drives such as SSDs into legacy systems that may only support 3.5 hard drives. The enclosure provides a cost-efficient way for companies and organizations to enhance storage performance and reliability without expensive upgrades to core IT systems. It's also ideal for system administrators and integrators who want to build a system or upgrade a system with limited SATA interfaces to take advantage of the increased drive performance of 2.5 SSDs or increased capacity with support for two drives.
The adapter enclosure allows you to install two 2.5" SATA drives into an internal or external 3.5-inch bay, such as a drive drawer caddy or tray, or 3.5" drive enclosure. To utilize the full speed potential of your SATA III hard drives, the drive converter supports SATA III for transfer speeds up to 6Gbps. Suitable for drives with a height of up to 9.5 mm, virtually any 2.5" SATA drive can be made to look and function like a 3.5" drive.
Enhanced performance and data redundancy with RAID
The adapter enclosure is equipped with hardware RAID to provide improved performance and data redundancy. The enclosure supports both RAID 0 and RAID 1 as well as Spanning, and JBOD, and lets you choose your preferred backup mode by simply adjusting the RAID setting switch.
The RAID 1 functionality is ideal in a hot-swapping server environment, providing a level of security and reliability to your data through data redundancy. With RAID 0 support, you can combine the storage capacity of the two hard drives and achieve faster read and write speeds.
Easy and flexible installation
You can install the adapter enclosure into a desktop PC or server. It offers flexible use in hot-swap bays or in a more fixed, permanent installation in a 3.5 hard-drive mounting bay with standard mounting holes. Once installed, you simply slide two 2.5 HDDs/SSDs into the adapter enclosure, with no tools required. The aluminum housing protects installed drives in a durable enclosure.
The 35SAT225S3R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Drive Connectors | SATA Data & Power Combo (7+15 pin) |
| Environmental | |
| Humidity | 5% ~ 65% |
| Operating Temperature | 0C to 55C (32F to 90F) |
| Storage Temperature | -20C to 55C (-4F to 131F) |
| Hardware | |
| Chipset ID | ASMEDIA - ASM1092R |
| Compatible Drive Types | SATA |
| Drive Installation | Removable |
| Drive Size | 2.5in |
| Fan(s) | No |
| Key Lock | No |
| Number of Drives | 2 |
| Number of internal 3.5 inch bays | 1 |
| Supported Drive Height(s) | 9.5mm |
| Indicators | |
| LED Indicators | Bay 1 HDD Error |
| Bay 2 HDD Error | |
| Packaging Information | |
| Shipping (Package) Weight | 270 g [9.5 oz] |
| Performance | |
| Maximum Data Transfer Rate | 6Gbps |
| Port Multiplier | No |
| RAID | Yes |
| Supported RAID Modes | BIG (Spanning or Concatenation) |
| JBOD - (Just a Bunch of Disks) | |
| RAID 0 (Striped Disks) | |
| RAID 1 (Mirrored Disks) | |
| Physical Characteristics | |
| Color | Silver & Black |
| Enclosure Type | Aluminum and Plastic |
| Product Height | 26 mm [1 in] |
| Product Length | 146 mm [5.7 in] |
| Product Weight | 223 g [7.9 oz] |
| Product Width | 102 mm [4 in] |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| What's in the Box | |
| Included in Package | dual-bay 2.5" to 3.5" drive converter |
| mounting screws | |
| quick-start guide | |
| Features | |
| Size (imperial) Physical dimension. | 8.89 cm (3.5") |
| Type Characteristics of the device. | Carrier panel |
| Number of HDDs supported The total number of hard drives that can be used in/with this product. | 2 |
| HDD size The amount of data that the hard drive can store. | 2.5" |
| HDD interface The way that a hard disk drive (HDD) is connected to the rest of the computer through a 'bus' such as ATA or SCSI. | Serial ATA,Serial ATA II,Serial ATA III |
| Supported storage drive heights | 9.5 mm |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 6 Gbit/s |
| LED indicators |
 |
| Key lock |
 |
| Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. | ASMEDIA - ASM1092R |
| RAID levels RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required. | 0,1,BIG,JBOD |
| Product colour The colour e.g. red, blue, green, black, white. | Black,Silver |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminum, Plastic |
| Certification | CE, FCC, UL |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Ports & interfaces | |
| Port multiplier |
|
| External SATA ports quantity | 1 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 102 mm |
| Depth The distance from the front to the back of something. | 146 mm |
| Height The measurement of the product from head to foot or from base to top. | 26 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 223 g |
| Packaging data | |
| Package weight Weight of the packaged product. | 270 g |
| Packaging content | |
| Screws included |
|
| Operational conditions | |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 55 °C |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 65% |
| SKU | 239120 |
| MPN | 35SAT225S3R |
| Brand | Startech |
| Product Condition | Brand New/Unused |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.startech.com/ |
